WING MODIFYING PN-DCP PACKETS IN TAGGED VLAN

WING MODIFYING PN-DCP PACKETS IN TAGGED VLAN

Valter_Veiga
New Contributor III
WING MODIFYING PN-DCP PACKETS IN TAGGED VLAN

When Using a TAG Vlan do pass PROFINET packets, Server and Client are in loop Ident




When Using Untag Vlan to pass PROFINET packets, it works

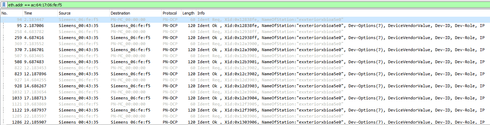

7a95425b301043e087a6270e8f412e40_RackMultipart20181025-49845-1ujecdz-Identify_inline.png



It is something not working when processing tag frames and PN-DCP Protocol

1 REPLY 1

Daren_Ellis
Extreme Employee
Hi Valter,

WiNG should not alter the packet.
Assuming "When Using Untag Vlan to pass PROFINET packets" means AP or controller switchport was configured for access.
Can you confirm that the trunk configuration is matching on both sides WiNG device and L2 switch.
Note: Especially ensure the native (untagged) vlan for the trunk ports are correctly defined.
