Create alarm or email alerts on archive success or failure including list of switches

  • 0
  • 1
  • Question
  • Updated 3 years ago
  • Answered
Hi,

Is it possible to get email alerts when archive has been a success or failure?

Also if possible can we have a list of switches with success and failure?

Thanks
Photo of Kunal Waghela

Kunal Waghela

  • 252 Points 250 badge 2x thumb

Posted 3 years ago

  • 0
  • 1
Photo of Mike Thomas

Mike Thomas, Employee - GTAC - NMS

  • 7,650 Points 5k badge 2x thumb
Kunal, Yes, via Alarms Manager, but I am trying to work the kinks out (keeps telling me device up message, but triggers off the right archive string). Do you want to try a remote session so we can get to your specific goals quicker?
Photo of Kunal Waghela

Kunal Waghela

  • 252 Points 250 badge 2x thumb
Yep we could do a remote session.  Would you be available tomorrow as I am currently out.
Photo of Mike Thomas

Mike Thomas, Employee - GTAC - NMS

  • 7,650 Points 5k badge 2x thumb
Okay, Here is a template for you which is a good starting point for the concept anyways. I am generating as a goal, just an email based on inventory manager archive message "Archive Save"

Start by loading Alarm Manager from Console - Tools->Alarm/Event->Alarms Manager
Click on New Alarm

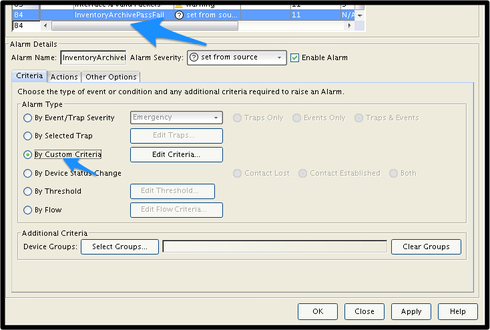

Once that is  selected, select the Criteria Tab and By Custom Criteria Button.



Click Edit Criteria as noted above

I selected Match on Log Manager for Inventory. I added the Match on information text string "Archive Save" and then selected that. See below.

Using the Edit List Button I added the following.

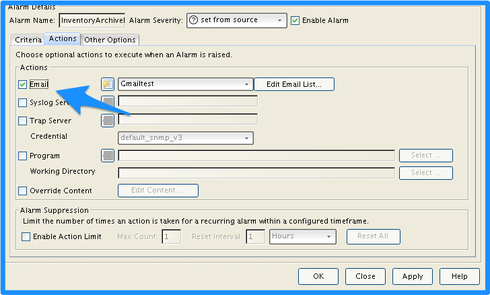

Click OK on the edit custom Alarm Criteria and then click on Actions Tab While still selecting this alarm. Set the Action to Email. (When I had trap server enabled  toit was giving me the Clear Alarms bit)




Now, I went and stamped a new version, and regardless of whether it pass or fails, I get this message, because I was searching on a string for that simple message.

And here is the email message from my improperly assigned controller.

Device: 10.0.0.250
Severity: Error
Message: Archive Save New Archive: (10.0.0.250) Version Stamp: Jul 30, 2015 11:18:47 AM - Configuration Upload script is empty in file Extreme Networks Wireless Controller - SCP


So let us know if this gets you going, or any feedback to make a better solution out of it that meets your goals.
Photo of Kunal Waghela

Kunal Waghela

  • 252 Points 250 badge 2x thumb
Thanks will update how it goes.
