In the process of trying to make use of CEP detection and policy assignment to provide Mitel phones with a phones policy and dynamically assign the VLAN.
CEP is configured, and working by providing the Voice policy I want. The issue I have is that the LLDP-MED detection looks like its just detecting that a device is LLDP-MED capable instead of checking if an actual phone is being detected.
If you see below are the results of two ports that have LLDP enabled, the first is a PC the second is a phone:
PC
Phone
Below is the result of the CEP detection and policy assignment:
PC
Phone
As you can see both the phone and the PC have been detected by CEP and given the same policy.
What I would like to do is perhaps use a specific feild within LLDP-MED TLV's, say "MED Manufacturer Name" to match "Mitel Corporation" and then assign the policy

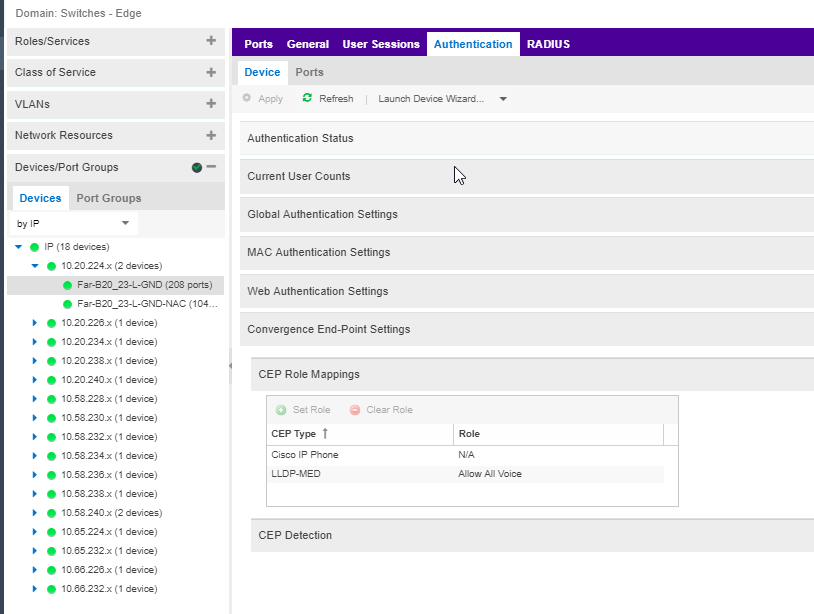

The configuration looks like the following:
Switch Version: 22.6.1.4
XMC Version: 8.2.4.42
Many thanks.
In the process of trying to make use of CEP detection and policy assignment to provide Mitel phones with a phones policy and dynamically assign the VLAN.
CEP is configured, and working by providing the Voice policy I want. The issue I have is that the LLDP-MED detection looks like its just detecting that a device is LLDP-MED capable instead of checking if an actual phone is being detected.
If you see below are the results of two ports that have LLDP enabled, the first is a PC the second is a phone:
PC
code:
B20_23-L-GND.1 # show lldp port 1:1 neighbors detailed
-----------------------------------------------------------------------------
LLDP Port 1:1 detected 1 neighbor
Neighbor: 08:2E:5F:06:D7:19/08:2E:5F:06:D7:19, age 689 seconds
- Chassis ID type: MAC address (4)
Chassis ID : 08:2E:5F:06:D7:19
- Port ID type: MAC address (3)
Port ID : 08:2E:5F:06:D7:19
- Time To Live: 3601 seconds
- IEEE802.3 MAC/PHY Configuration/Status
Auto-negotiation : Supported, Enabled (0x03)
Operational MAU Type : (0)
- MED Capabilities: "MED Capabilities"
MED Device Type : Endpoint Class I (1)
Phone
code:
B20_23-L-GND.2 # show lldp port 1:32 neighbors detailed
-----------------------------------------------------------------------------
LLDP Port 1:32 detected 1 neighbor
Neighbor: (5.1)10.20.64.27/08:00:0F:3B:2A:A7, age 1 seconds
- Chassis ID type: Network address (5); Address type: IPv4 (1)
Chassis ID : 10.20.64.27
- Port ID type: MAC address (3)
Port ID : 08:00:0F:3B:2A:A7
- Time To Live: 120 seconds
- Port Description: "LAN port"
- System Name: "mobDN 7207,MITEL 5340 IP"
- System Description: "mobDN 7207,MITEL 5340 IP,Cordless,h/w rev 1,ASIC \
rev 1,f/w Boot 06.04.00.03,f/w Main 06.03.02.07"
- System Capabilities : "Bridge, Telephone"
Enabled Capabilities: "Bridge, Telephone"
- Management Address Subtype: IPv4 (1)
Management Address : 10.20.64.27
Interface Number Subtype : Unknown (1)
Interface Number : 0
Object ID String : "null"
- IEEE802.3 MAC/PHY Configuration/Status
Auto-negotiation : Supported, Enabled (0x03)
Operational MAU Type : 100BaseTXFD (16)
- MED Capabilities: "MED Capabilities, Network Policy, Extended Power via MDI - PD"
MED Device Type : Endpoint Class III (3)
- MED Network Policy
Application Type : Voice (1)
Policy Flags : Unknown Policy, Untagged (0x0)
VLAN ID : 0
L2 Priority : 0
DSCP Value : 0
- MED Network Policy
Application Type : Voice Signaling (2)
Policy Flags : Unknown Policy, Untagged (0x0)
VLAN ID : 0
L2 Priority : 0
DSCP Value : 0
- MED Extended Power-via-MDI
Power Type : PD Device (1)
Power Source : Unknown (0)
Power Priority: High (2)
Power Value : 8.8 Watts
- MED Hardware Revision: "PCB Version: 1"
- MED Firmware Revision: "Boot 06.04.00.03"
- MED Software Revision: "Main 06.03.02.07"
- MED Serial Number: ""
- MED Manufacturer Name: "Mitel Corporation"
- MED Model Name: "MITEL 5340 IP"
- MED Asset ID: ""
Below is the result of the CEP detection and policy assignment:
PC
code:
B20_23-L-GND.3 # show netlogin session ports 1:1 agent convergence-endpoint
Multiple authentication session entries
---------------------------------------
Port : 1:1 Station address : 08:2e:5f:06:d7:19
Auth status : success Last attempt : Mon Apr 8 16:01:15 2019
Agent type : cep Session applied : false
Server type : local VLAN-Tunnel-Attr : None
Policy index : 23 Policy name : Allow All Voice (active)
Session timeout : 0 Session duration : 17:52:14
Idle timeout : 300 Idle time : 0:00:00
Auth-Override : disabled Termination time : Not Terminated
Phone
code:
B20_23-L-GND.5 # show netlogin session ports 1:31 agent convergence-endpoint
Multiple authentication session entries
---------------------------------------
Port : 1:31 Station address : 08:00:0f:30:e9:39
Auth status : success Last attempt : Mon Apr 8 15:58:29 2019
Agent type : cep Session applied : false
Server type : local VLAN-Tunnel-Attr : None
Policy index : 23 Policy name : Allow All Voice (active)
Session timeout : 0 Session duration : 17:56:09
Idle timeout : 300 Idle time : 0:00:00
Auth-Override : disabled Termination time : Not Terminated
As you can see both the phone and the PC have been detected by CEP and given the same policy.
What I would like to do is perhaps use a specific feild within LLDP-MED TLV's, say "MED Manufacturer Name" to match "Mitel Corporation" and then assign the policy
The configuration looks like the following:
code:
enable policy
configure policy convergence-endpoint enable
configure policy convergence-endpoint index 23 lldp-med
configure policy convergence-endpoint ports 1:1 lldp-med enable
configure policy convergence-endpoint ports 1:31 lldp-med enable
Switch Version: 22.6.1.4
XMC Version: 8.2.4.42
