vlan tab (device) netsight

vlan tab (device) netsight

Murilo_Melo
New Contributor
Hello guys,

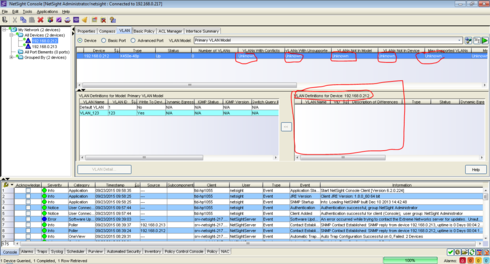

I am trying to manage the VLANs of switches through NetSight (Console> VLAN Tab and select "Device" radio), but by clicking on the link (Retrieve on top right) the NetSight should seek the information existing on the device selected VLANs, gives? As a "show vlan" and bring it to the NetSight?

Regardless of Switch selected, this procedure is not bringing any information and gives no error message in the log of NetSight or switches.

cbbeffca49b643c2a06c45ff14a3eb1f_RackMultipart20150923-30154-l2n9sg-Capturar01_inline.png



In our LAB (Senary 3) ...

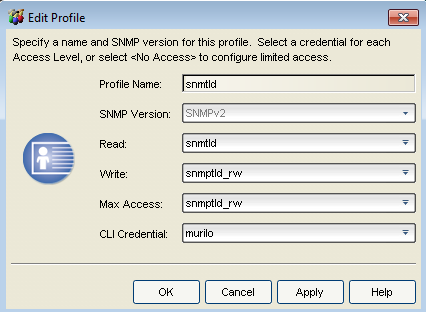

- SNMP configuration:#

# Module snmpMaster configuration.

#

configure snmpv3 delete community "private"

configure snmpv3 delete community "public"

configure snmpv3 add community "snmptld" name "snmptld" user "v1v2c_ro"

configure snmpv3 add community "snmptld_rw" name "snmptld_rw" user "v1v2c_rw"

cbbeffca49b643c2a06c45ff14a3eb1f_RackMultipart20150923-10641-nbpg6r-Capturar02_inline.png

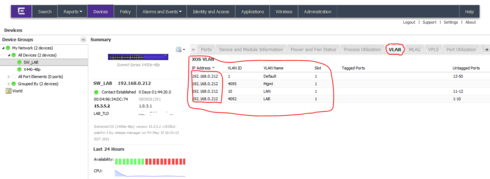

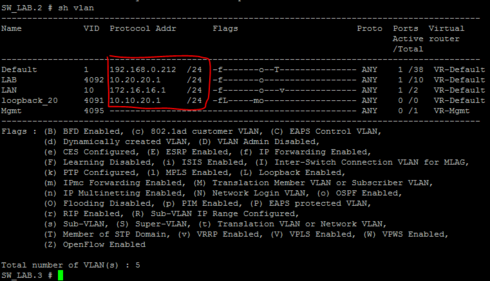

I do not know if it's relevant but OneView the information of the VLANs are shown (although without the information from the IPs of each vlan) but can not really manage there.

cbbeffca49b643c2a06c45ff14a3eb1f_RackMultipart20150923-16518-j1dt9l-Capturar03_inline.png



cbbeffca49b643c2a06c45ff14a3eb1f_RackMultipart20150923-32038-1fgrijv-Capturar04_inline.png



I tested in 3 senarios:
Senary 1:
- Client with Windows Server 2008 R2 64bit + NetSight v6.2.0.211
- Switches Park x440 (XOS v15.7.1.4)

Senary 2:
- Customer VM NetSight Appliance 64bit v6.2.0.224
- Switches Park: x250, x440 (XOS varied v)

Senary 3:
- Our Lab with VM NetSight Appliance 64bit v6.2.0.224
- Switches: X450e-48p (XOS v15.3.5.2 patch1-3) and x440-48p (XOS v15.6.1.4)

I read the documentation and HELP of NetSight and found no additional configuration that needs to be done.

Can anyone tell if lacking something to be configured on the switch or NetSight?

Thanks.

7 REPLIES 7

Ramon_Voorn
New Contributor
Great! Thanks Mike, I will upgrade to 6.3.

Mike_Thomas
Extreme Employee
We checked this morning, it is only available via the device-mapview in 6.3.0.xxx

Mike_Thomas
Extreme Employee
I will need to re-test with 6.2. The server I used was the latest, the 6.3.0.162 release.
If you have the opportunity to upgrade, I would. I am assuming it's new functionality.

Murilo_Melo
New Contributor
Here, we have "Map" and "Links" only (v6.2.0.224)

I try to create a vlan "NSVlan02" to 2 devices and in both were successfully created though i don't know why the Warn message he gave.

6b3331417dc24c54a24b4e733f509ae9_RackMultipart20150925-12059-1wsp0i2-Capturar003_inline.png
