XMC Custom Backup Script Not Showing

XMC Custom Backup Script Not Showing

Anonymous
Not applicable

Hi,

Having an issue getting a custom script to show up in XMC (8.2.4.42). Here is the script:

-- Use these scripts to manage Mellanox devices name="Mellanox - SCP" desc="Mellanox SSH/SCP Scripts" protocol=SCP -- -----BEGIN SCRIPT "Configuration Upload"----- enable conf t configuration text generate active running upload scp://%SCP_USER%:%SCP_PSWD%@%SCP_IP%:%ABSOLUTE_TARGET_DIR_PATH% @receive 40 exit -----END SCRIPT----- -----BEGIN SUCCESS "Configuration Upload"----- bytes copied -----END SUCCESS----- -----BEGIN SCRIPT "Configuration Download"----- enable %ENABLEPSWD% copy %TFTP_URL% startup-config startup-config @receive 60 exit -----END SCRIPT----- -----BEGIN SUCCESS "Configuration Download"----- bytes copied -----END SUCCESS-----

Have followed this article:

https://extremeportal.force.com/ExtrArticleDetail?an=000077044

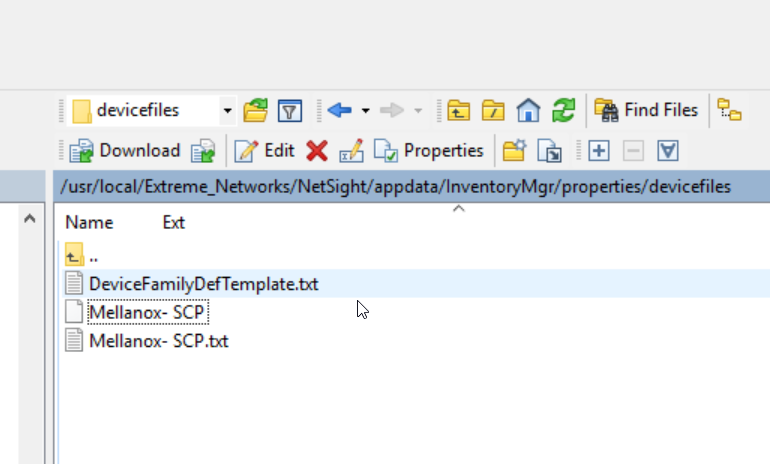

So the file is sitting in the correct location:





Now if I restart the nsserver service or reboot EMC, it just refuses to show up:









Any ideas would be grateful.

Thanks in advance.





0 REPLIES 0
