Hello,

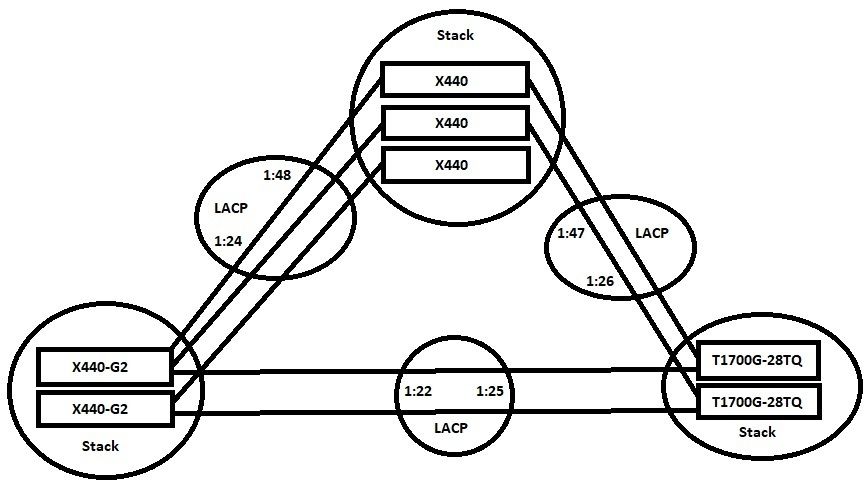

we would like to configure RSTP (or MSTP, whatever suits better) with our X440, X440-G2 and TP-Link switches. Here is a picture of our topology:
In the LACP circles you can see the config masters of the respective LACP config. All vLANS (23,100,110,181,183,198,199,200) are tagged on all uplinks. I guess the X440 stack should be the root bridge as it is our default gateway. What needs to be configured on the switches in order for STP to work properly?
Thanks in advance!
