04-19-2021 06:51 PM
Is there a browser where I can search the OIDs i need for cpu, memory, interface usage for 3k, 4k, 5k and 7k series.
Thanks
Sahar
04-23-2021 03:21 PM
please note, that VSP have a different private MIB tree (RapidCity) than ERS (Synoptics). They are only some little exception where VOSS have Synoptics C5000 MIB elements supported.
So for the CPU Memory you have to use different OIDs per VOS & ERS switch.
04-22-2021 09:39 PM
04-22-2021 03:16 PM

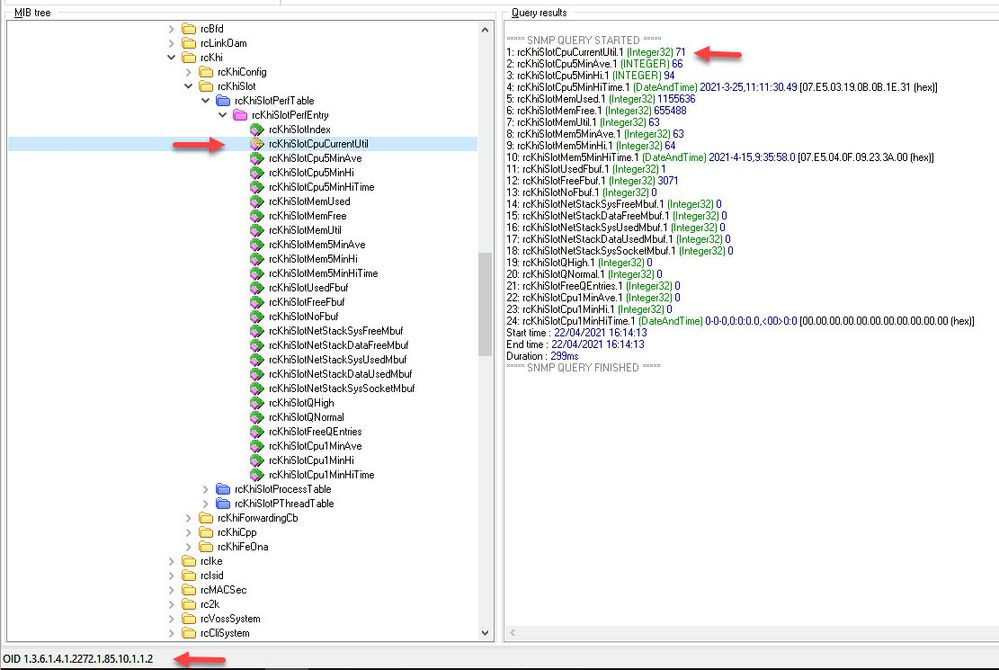

please note, for all the current VOSS based switches you have to use this MIB tree to get access to the system resources. (RapidCity MIB)
rcKhiSlotPerfEntry 1.3.6.1.4.1.2272.1.85.10.1.1
Several example above are wrong, because they pointing to the Synoptics MIB!!!!
Here the details about CPU utilization
Name: rcKhiSlotCpuCurrentUtil => OID: 1.3.6.1.4.1.2272.1.85.10.1.1.2
Description: Percentage CPU utilization under current
operating conditions.
04-21-2021 06:44 PM
also this resource is amazing:
