Is possible to assign a tag to eth1 interface of NAC virtual applaince?

Is possible to assign a tag to eth1 interface of NAC virtual applaince?

Antonio_Opromol
Contributor II

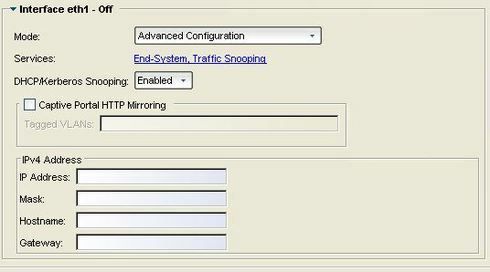

Hi, is possible to configure the secondary interface eth1 of the virtual NAC gateway as a tagged interface?

58d236e07237419d89facb59df038151_RackMultipart20160422-21914-mjumfe-Capture_inline.jpg

Thanks
4 REPLIES 4

Antonio_Opromol
Contributor II
Thanks Matthew for your suggest. I'll try to do this change and see how it works..

Matthew_Hum1
Extreme Employee

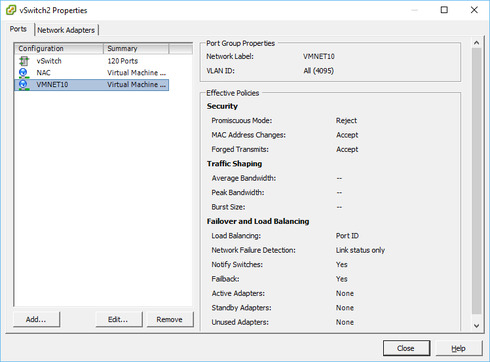

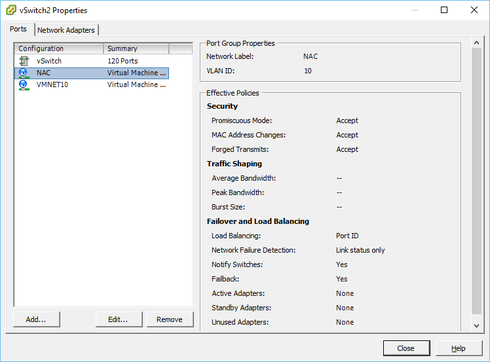

You can create another port group on the same virtual switch on a specific vlan (i.e. 10) and the NAC traffic on that port group that will leave the same physical port on vlan 10. everything on VMNET10 will also see that traffic tagged as vlan 10.

9082e47541d84df1ba2699423a12e423_RackMultipart20160429-83130-8226p9-vmware-nac1_inline.png


9082e47541d84df1ba2699423a12e423_RackMultipart20160429-106163-1s2fvgr-vmware-nac2_inline.png

oops. i just noticed that my first screenshot had promiscuous mode set to reject. this should be accept.

Drew_C
Valued Contributor III
Hi Antonio,
I believe you'll be better off configuring this on the vSwitch (assuming VMware) so that you can ensure the traffic leaves the host tagged.
