Hi,

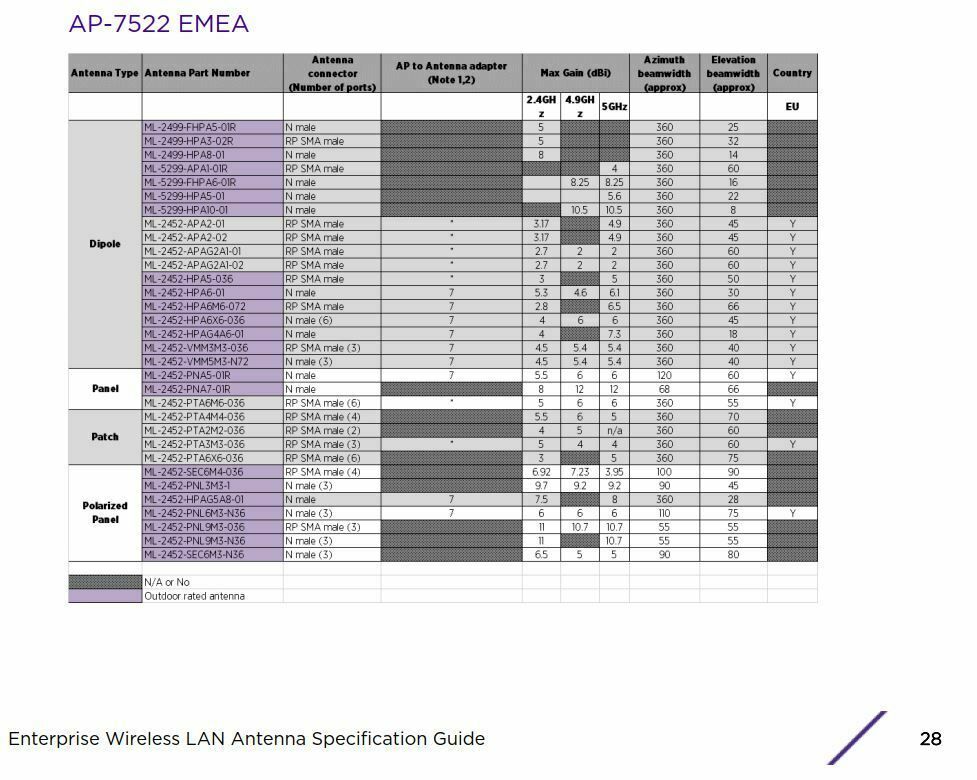

The antenna guide in page 28 lists all the compatible antennas for AP7522 EMEA.
For Patch antennas there is a (*) for ML-2452-PTA3M3-036 which has three(3) connectors.
How should this be connected on the AP7522e which only has two(2) RP-SMA ports? What should the antenna mode be set in the config of the radios?
Why ML-2452-PTA2M2-036 which has two(2) connectors is not available?
The same question goes for antenna ML-2452-PTA6M6-036 which has six(6) ports.
Thank you in advance.
![fc76d037715a4a8ab825b521ebe14110_4d1297a3-6af4-4b3a-8f95-86c369c3de7b.jpg fc76d037715a4a8ab825b521ebe14110_4d1297a3-6af4-4b3a-8f95-86c369c3de7b.jpg](/t5/image/serverpage/image-id/4209i7237E6D64F91C363/image-size/large?v=v2&px=999)
![fc76d037715a4a8ab825b521ebe14110_56f1d559-f5e7-4740-a626-d9e19ee1bcd8.jpg fc76d037715a4a8ab825b521ebe14110_56f1d559-f5e7-4740-a626-d9e19ee1bcd8.jpg](/t5/image/serverpage/image-id/167i97264F9A3AD8A0EE/image-size/large?v=v2&px=999)
