How to block client use Wing 5.8

[Tuan_Nguyen]

Hi Everybody

I'm using AP7161 with FW WIng 5.8. How to block 1 client in the network?

Thanks you

[Bin]

Hi,

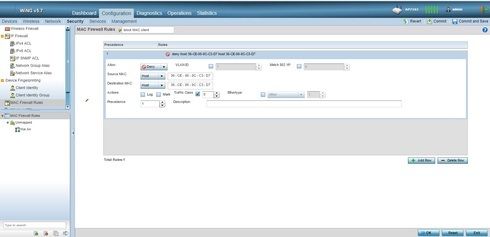

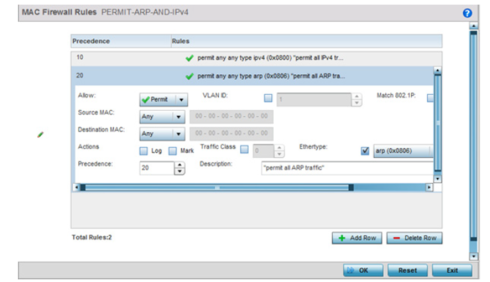

You could configure MAC Firewall Rules to block the client.

1. Select Configuration > Security > Wireless Firewall > MAC Firewall Rules
2. Add new Row to create MAC firewall Rule to Deny the traffic

3. Apply the rule on WLAN

Best regards,

[Prakash]

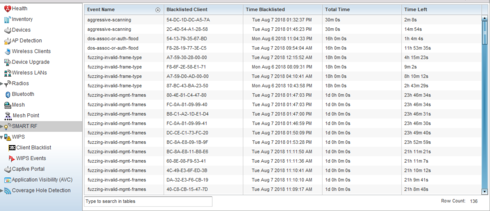

hey i need help... Please tell me how to disable client auto blocking in rfs7000 (WIPS ) ...

[Tuan_Nguyen]

Hi you

I created MAC firewall rules but client still connection. I try created IP Firewall rules but still not successful. Can you help me
Thank you

I

[Shay_Weir]

In the GUI...
Configuration Tab
Wireless tab
Association ACL - Create one to deny the MAC. Be sure to do a permit at the end for all others (permit 00-00-00-00-00-00 FF-FF-FF-FF-FF-FF precedence 1000)

Once created...
WLAN Tab
select the SSID to apply ACL to
Expand the list of options for the WLAN
Select Firewall
then look for association ACL and enter the name of the ACL you created above to deny the MAC. Apply and save.

How to do via GUI.....
I prefer to use the CLI as it is much quicker. Download the Command reference guide for WiNG. All CLI commands are there. Very easy to use.
Good luck.
