How to configure DHCP Server AP7602

How to configure DHCP Server AP7602

Alan_Phan
New Contributor
Dear Team,

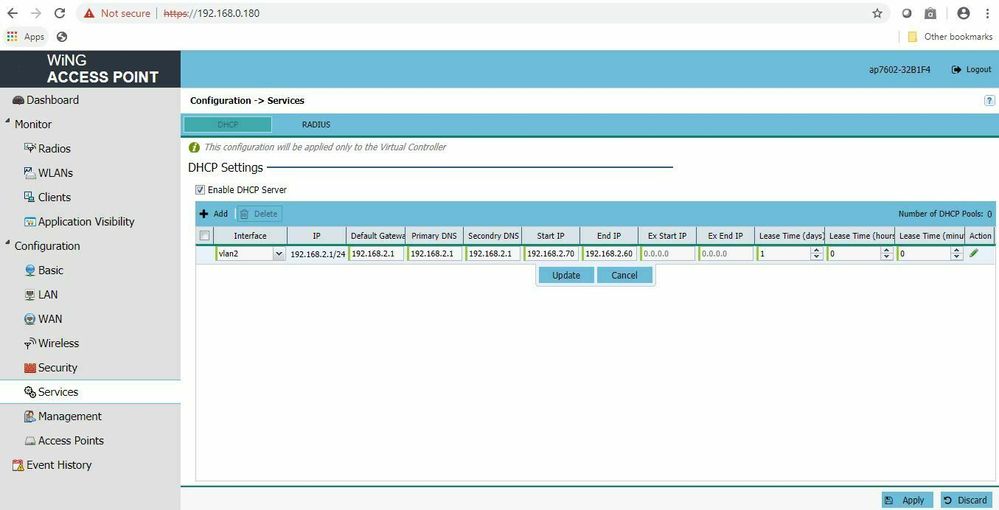

I have tried DHCP service setting on AP7602 but not ok. Would you please help me check
I created 2 ssid with 2 vlan difference:
  • SSID:Extreme AP7602 - VLAN1:192.168.0.180/24
  • SSID:AP7602_Trial - VLAN2:192.168.2.1/24
When I access SSID:AP7602_Trial - my laptop don't receive IP in range VLAN2.

Regards,
Alan
4 REPLIES 4

Tomasz
Valued Contributor II
Hi Alan,

The running config has the policy empty. Just to make sure, did you apply the changes (bottom right in the UI)?

Hope that helps,
Tomasz

Tuan_Nguyen1
New Contributor
I am also interested

Alan_Phan
New Contributor


Alan_Phan
New Contributor
Here is log:
ap7602-32B1F4#show running-config
!
! Configuration of AP7602 version 5.9.2.0-032R
!
!
version 2.5
!
!
client-identity-group default
load default-fingerprints
!
ip access-list BROADCAST-MULTICAST-CONTROL
permit tcp any any rule-precedence 10 rule-description "permit all TCP traffic"
permit udp any eq 67 any eq dhcpc rule-precedence 11 rule-description "permit DHCP replies"
deny udp any range 137 138 any range 137 138 rule-precedence 20 rule-description "deny windows netbios"
deny ip any 224.0.0.0/4 rule-precedence 21 rule-description "deny IP multicast"
deny ip any host 255.255.255.255 rule-precedence 22 rule-description "deny IP local broadcast"
permit ip any any rule-precedence 100 rule-description "permit all IP traffic"
!
ip access-list default-B8500132B1F4-nat
permit ip any any rule-precedence 1
!
mac access-list PERMIT-ARP-AND-IPv4
permit any any type ip rule-precedence 10 rule-description "permit all IPv4 traffic"
permit any any type arp rule-precedence 20 rule-description "permit all ARP traffic"
!
ip snmp-access-list default
permit any
!
firewall-policy default
no ip dos tcp-sequence-past-window
no stateful-packet-inspection-l2
ip tcp adjust-mss 1400
!
!
mint-policy global-default
!
meshpoint-qos-policy default
!
wlan-qos-policy AP7602_Trial
rate-limit client to-air rate 5000
rate-limit client from-air rate 5000
qos trust dscp
qos trust wmm
!
wlan-qos-policy "Extreme AP7602"
rate-limit client to-air rate 5000
rate-limit client from-air rate 5000
qos trust dscp
qos trust wmm
!
wlan-qos-policy default
qos trust dscp
qos trust wmm
!
radio-qos-policy default
!
wlan AP7602_Trial
description
ssid AP7602_Trial
vlan 2
bridging-mode local
encryption-type none
authentication-type none
no client-client-communication
no fast-bss-transition over-ds
use wlan-qos-policy AP7602_Trial
!
wlan "Extreme AP7602"
description
ssid "Extreme AP7602"
vlan 1
bridging-mode local
encryption-type none
authentication-type none
no client-client-communication
no fast-bss-transition over-ds
use wlan-qos-policy "Extreme AP7602"
!
dhcp-server-policy WiNGExpressDhcpSvrPolicy
!
!
management-policy default
telnet
no http server
https server
rest-server
ssh
user admin password 1 ea260ae069f4d4a8b27e585041e55d365f7cac4eb444207d870e75e46dbd740b role superuser access all
snmp-server community 0 private rw
snmp-server community 0 public ro
snmp-server user snmptrap v3 encrypted des auth md5 0 admin123
snmp-server user snmpmanager v3 encrypted des auth md5 0 admin123
!
nsight-policy default
!
profile ap7602 default-ap7602
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto load-management
crypto remote-vpn-client
interface radio1
wlan "Extreme AP7602" bss 1 primary
wlan AP7602_Trial bss 2 primary
antenna-mode 1x1
interface radio2
wlan "Extreme AP7602" bss 1 primary
wlan AP7602_Trial bss 2 primary
antenna-mode 1x1
interface bluetooth1
shutdown
interface ge1
interface ge2
interface vlan1
ip address dhcp
ip address zeroconf secondary
ip dhcp client request options all
interface pppoe1
use firewall-policy default
use client-identity-group default
service pm sys-restart
router ospf
adoption-mode controller
!
rf-domain default
timezone Etc/GMT+7
country-code vn
use nsight-policy default
!
ap7602 B8-50-01-32-B1-F4
use profile default-ap7602
use rf-domain default
hostname ap7602-32B1F4
location default
ip name-server 8.8.8.8
ip name-server 8.8.4.4
ip default-gateway 192.168.0.1
interface vlan1
description "WAN Interface"
ip address 192.168.0.180/24
no ip dhcp client request options all
ip nat inside
no shutdown
interface vlan2
no description
ip address 192.168.2.1/24
no ip nat
use dhcp-server-policy WiNGExpressDhcpSvrPolicy
no virtual-controller
rf-domain-manager capable
ip dns-server-forward
ip nat inside source list default-B8500132B1F4-nat precedence 1 interface vlan1 overload
no adoption-mode
!
!
end
