How to factory default an Altitude AP4511?

How to factory default an Altitude AP4511?

New Contributor
Reset default AltitudeTM 4511 Access Point, you can helps me? Note: This conversation was created from a reply on: Which all Access points are supported with rogue detector in 4511 series and 4620....

New Contributor

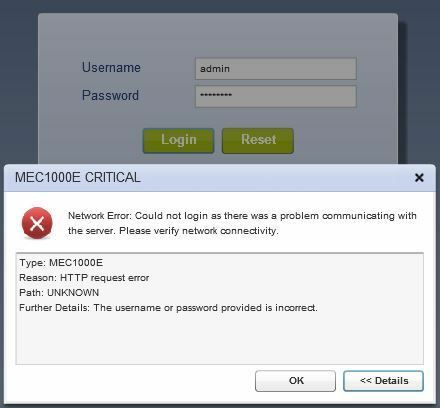

but can't connect, I'm reset very ... I think error CRITICAL


Valued Contributor III
Hi Vo,
What username and password did you try?

After a hard reset, the login will be admin/abc123 or admin/admin123.

Extreme Employee
Hello Vo,

There are two ways to reset the unit to factory defaults.
To revert to factory default configuration using the hardware reset button on the bottom of the unit:
1. Remove power from the AP
2. Using a paper clip, press and hold the reset button on the back of the unit. The reset button is located on the serial label, below the words "part number"
3. Apply power by connecting a PoE source
4. The amber LED will blink slow three times
5. When ithe Amber LED blinks fast, release the button
6. The AP will continue to boot in its default configuration state

From the webUI, navigate to the Operations main menu.Select Reset (factory default) from the menu at the bottom of the page. Click Execute
