Radius Logs

Radius Logs

AleandroA
New Contributor
Good morning,

We havea  Ssite Engine as Radius server to authenticate/authorize management access to switches. I haven't been able to find the logs for these requests for troubleshooting purposes.

If anyone knows, I will highly appreciate your help.

Thanks.
2 REPLIES 2

Jave
New Contributor III
Hi Aleandro,

From my experience, you need to:

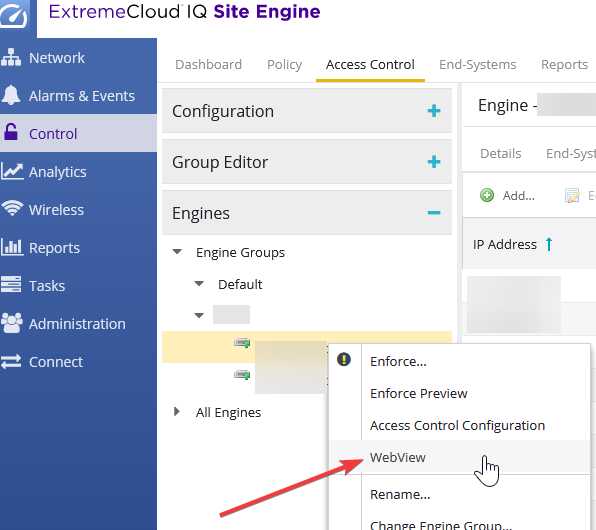

  • right click on one of your NAC gateway from "Control Engines List" and choose "WebView"

  • from the new tab opened, go to "Diagnostic\Applicance Server Diagnostics"
  • on entry "Authentication Request Processing - RADIUS", select "Verbose" from drop-down menu and click "OK" at the bottom of the web page

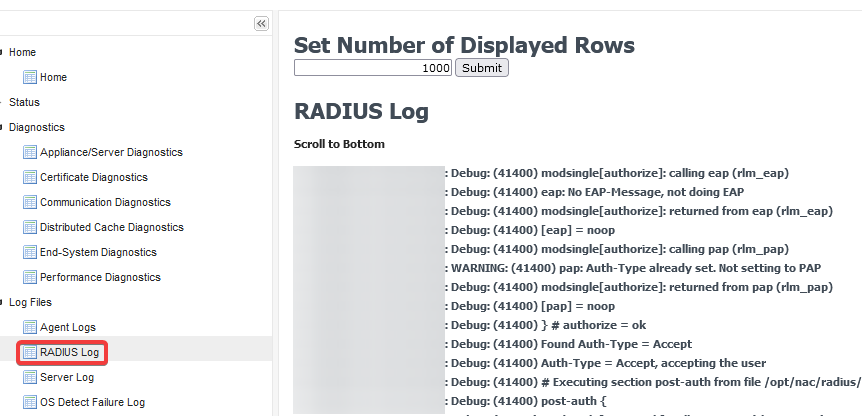

  • select in the right menu "Log Files" then "RADIUS Log"
You should then be able to diagnose RADIUS authentication processes for this NAC Gateway.

Rodjeur

AleandroA
New Contributor
Hi Rodjeur70,

Thanks for replying back, that makes the trick!!!!!!!!!!!.

Thanks again.
