EAPS

[Felipe]

Hello,I have a set EAPS ring between three points interconnected with radios. However the customer must include an optical fiber, as another option of redundancy / balancing. What would be the best way to configure this scenario?

[Felipe]

Paul and Daniel,I thank immensely for their help.
Thus, in my current scenario would not be possible I keep three hits. That's it?

[Paul_Russo]

good catch Daniel

[dflouret]

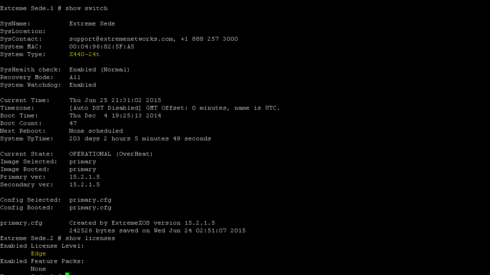

If the diagram is correct and the switches are X440, you can't configure Shared Port because that feature requires Core Licenses, which are unavailable for X440...

[Paul_Russo]

Hello Felipe

In this case the best approach would be to have two domains, one top triangle domain and one bottom parallelogram domain. This adds complexity as you then would need to do common links/shared ports on all of the triangle links.

Does that help?
P

[Felipe]

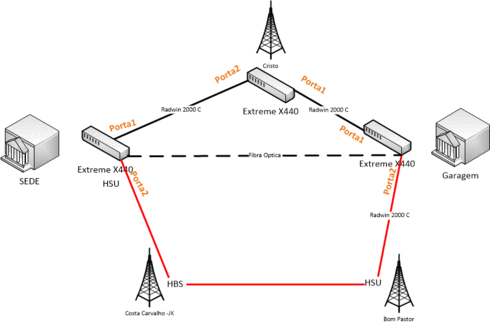

The following diagram, noting that already is set one domain of EAPS.
