awegmann · ‎01-12-2023

Does anyone know if the AP550's can separate 2.4ghz from 5ghz with different ssid's? I'm looking through the cloud IQ connect options and I don't see it. Maybe I'm missing something?

willd · ‎01-13-2023

This can be accomplished at the SSID and policy level. Whenever creating a SSID you can specify which radios to broadcast. Multiple policies can be created with their own various SSIDs and then can be assigned to APs accordingly.
The other option, if you just want to guarantee only certain APs broadcast only 2.4GHz or 5GHz is to disable one or the other at the AP config level.

View solution in original post

awegmann · ‎01-13-2023

Thank you for all the responses. This makes sense. I'm fairly new to the extreme networks/ aerohive universe so still learning where everything is.

mwilliams2 · ‎01-13-2023

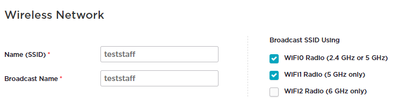

You can certainly just broadcast an SSID to 5ghz (or 6ghz) but for 2.4Ghz it will allow 5Ghz also. This is done with the checkbox on the network policy wireless networks page. as shown below.

willd · ‎01-13-2023

This can be accomplished at the SSID and policy level. Whenever creating a SSID you can specify which radios to broadcast. Multiple policies can be created with their own various SSIDs and then can be assigned to APs accordingly.
The other option, if you just want to guarantee only certain APs broadcast only 2.4GHz or 5GHz is to disable one or the other at the AP config level.
