ERS Management Login Via ExtremeControl

[Anonymous]

Hi,

Currently followed this article in configuring management access for ERS switches:

https://extremeportal.force.com/ExtrArticleDetail?an=000082104

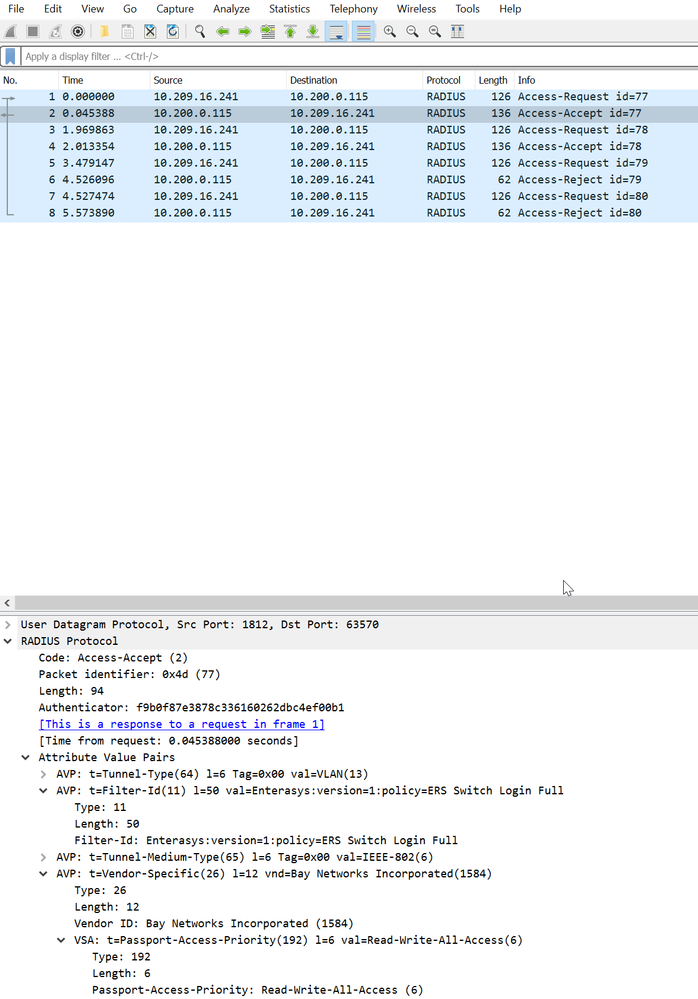

Believe the important step is to make sure the “Passport-Access-Priority” attribute is set. The packet capture below from NAC shows it is sending back the RADIUS accept with the attribute set to 6:

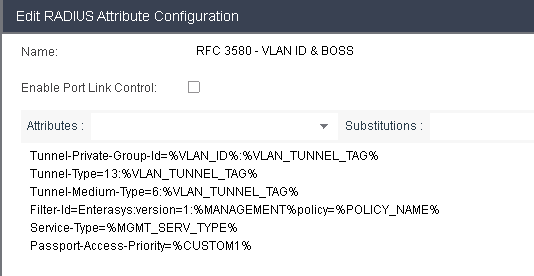

I created my own custom RADIUS attribute as was previous using the ‘RFC 3580 - VLAN ID” and could not see one that used the same values plus the one the article talked about. There is one pre-canned ones that come close but was not exactly the same:

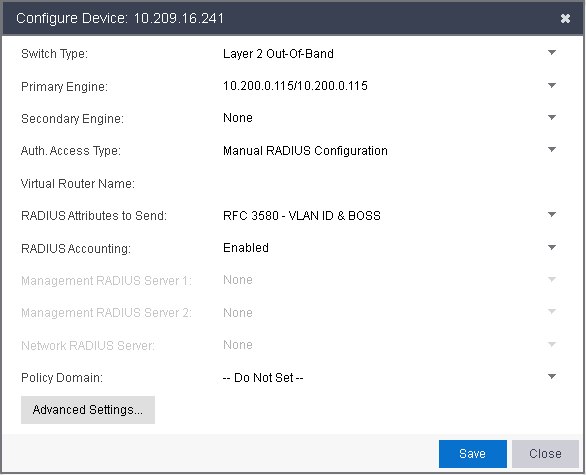

The other thing that is slightly different is the article mentions setting it to “Management Login”, but I need to do RFC 3580 VLAN ID for 802.1x authentication, so have it set as per below:

My question is though, if I’m sending what seems to be the correct RADIUS attribute with a RADIUS accept, why is the switch not letting my login?

The switch is an ERS 3626GTS

Version: 6.3.0.33

Many thanks in advance

[Miguel-Angel_RO]

Just for info, the passport attribute is for ERS8600 (running VOSS), the ERS running BOSS uses Service Type attribute.

Mig

[Ryan_Yacobucci]

Hey Martin,

To be honest I’m not sure. I’ve seen some ERS switches require Service-Type instead.

I’m thinking maybe the passport access priority might control read-write vs read-only in some version of ERS? We would need to investigate further to provide an official answer.

Thanks

-Ryan

[Anonymous]

Hi Ryan,

Thanks for getting back. That did work!

Need to do a little bit of a play, but assume as the article specifically mentions the passport attribute its needed as well?

Cheers,

Martin

[Ryan_Yacobucci · Accepted solution]

Hey Martin,

Try sending Service-Type=6 and let me know if that fixes it.

Thanks

-Ryan
