How to enable SNMP on AP305C IQ Engine ?

[MikeM1]

Hi there, I am trying to enable SNMP on AP305C IPaddress: 10.1.15.158.

I am following the next manual.

How To: How to configure SNMP on ExtremeCloud IQ (XIQ) | Extreme Portal

But after passing all these steps SNMPwalk returns a timeout.

~$ snmpwalk -v 3 -On -u username -l authPriv -a MD5 -A 'password' -x DES -X 'password' -m ALL 10.1.15.158 1.3.6.1.4.1.1916
~$ snmpwalk: Timeout

Could you please advise how to make it work as expected?

[RomanG]

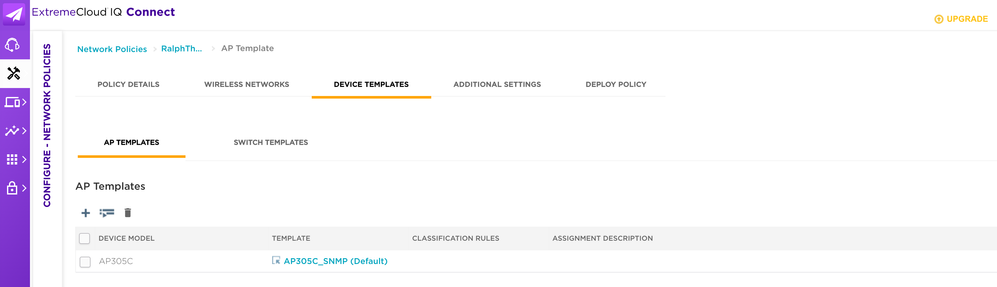

Yes, my SNMP template:

I

[systemscsn]

Stupid question, but you do have that AP device template associated in your network policy right? because if you dont, it will get its info from the out-of-the-box AP template which is unchangeable.  For changes to work, your AP template must be in your network policy.

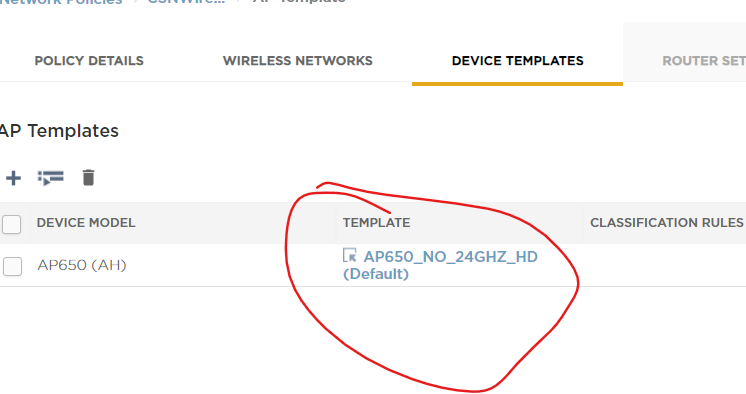

Should be like this, but with your AP template in it:




Hope this helps.

Jason.

[RomanG]

Here is the traffic filter:

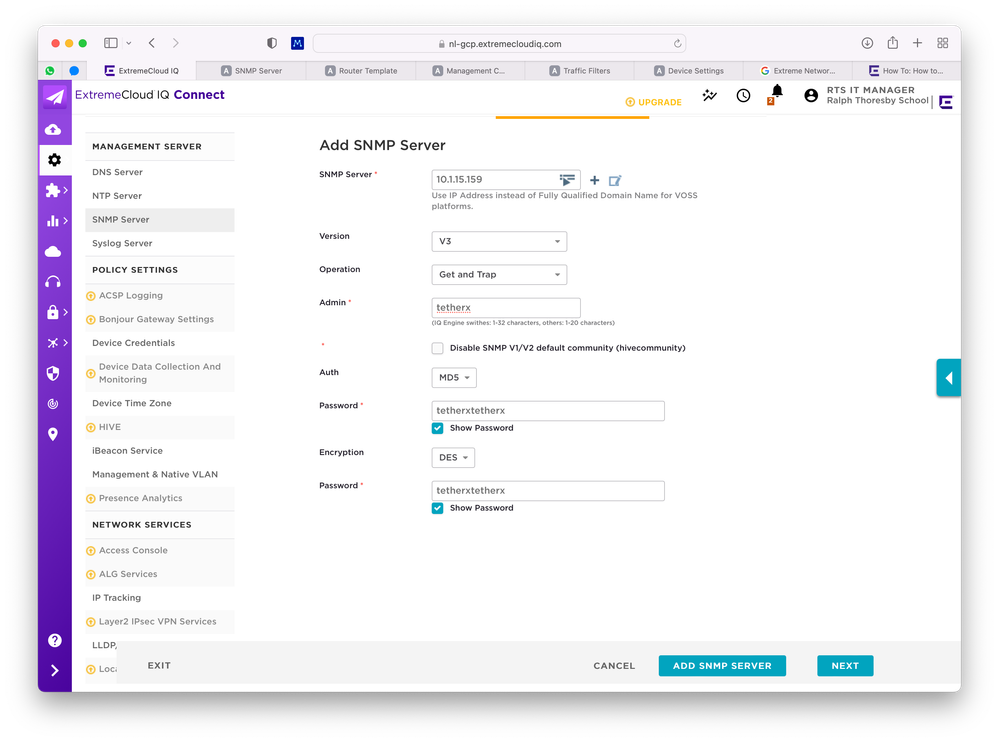

Here is screenshot of snmp, my Linux server IP is 10.1.15.159 (where I am trying to run snmpwalk):
Does the above look right?

How do I share output of "show run | include snmp" -- where do I run that?

[Nick_Moore]

Thank you for that. I did not see a screen shot of the traffic filter from the additional settings of the network policy. Apologies if I missed it. Do you have SNMP enabled there, too? Are you testing from a device that is in the range you configured for the SNMP server? Please provide the output of "show run | include snmp".

[RomanG]

Whoops, I noticed the image quality is very low, attaching again:
