checking ldap user and radius attribute on NAC Authentication

[PeterK]

Hi,

I’m currently on a migration process from Microsoft NPS to Extreme Control.

We have a Cisco ASA as VPN-Gateway.

I will authenticate VPN-Users and Mgmt-Logins.

In the past we separate this with different “called-station-id” values.

Can I realize this with NAC? AFAIK I can’t check/match LDAP-Criteria (LDAP-User-Group) and Radius-Attribute (Radius-User-Group) at the same time.

Or Is there a way to realize this?

[PeterK]

Hi Mig,

thanks for your answer.

I will have both 1 and 2 (not at the same time).

On the current NPS I check:

• NAS-IP (in both cases the same)
• the ldap-user-group (different groups, but a user can be member of both groups
• called-station-id (in case of VPN - value is WAN-IP; in case of mgmt its LAN-IP)

But in general, can I check/match/validate LDAP and Radius Information from Radius-Request at the same time?

[Miguel-Angel_RO]

Hi Peter,

Something is still unclear.

You want to

1. Authenticate VPN users with authentication requests coming from the ASA
2. Authenticate admin users loging into ASA?

If 2 is correct, the authentication request will be different in terms of inbound radius attributes and should be treated as such by Control.

Here an abstract of the event log of Control for a login on the switches:

This is an administrative request because Calling-Station-Id is not present

What attributes and values are you checking on your existing system?

Mig

[PeterK]

Hi Mig,

thanks for your answer, but this does not really helps.

Mgmt-Login for XOS Switches is no problem.

I will authenticate users for vpn-login und mgmt-login from Cisco ASA.

So, the source-IP is the same. So I need something to select. In the ASA we have different values which are send in Radius Request as called-station-id to the NAC.

[Miguel-Angel_RO]

PeterK,

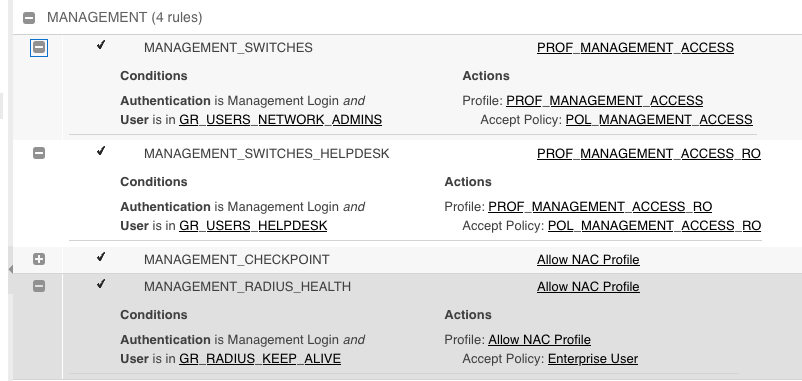

Here a screenshot on how I manage Mgmt logins on Control for ERS/VSP switches.

For the VPN users, you can validate them on the location (originated on the VPN concentrator and User-Groups).

Regards

Mig
