RADIUS management authentication on XMC / XIQ / Control 21.11.11.37 with ms-chap

[DominicS]

Hi Ryan

Thanks a lot for your reply / this information.

> Which protocols have you tried at this point?

I tried CHAP and PEAP-msCHAPv2.

> If you have NTLM authentication set can you also confirm you have successfully joined the AD and that winbindd is running with correct trust secret?

I did check it now, and there is an error:

could not obtain winbind interface details: WBC_ERR_WINBIND_NOT_AVAILABLE

could not obtain winbind domain name!

checking the trust secret for domain (null) via RPC calls failed

failed to call wbcCheckTrustCredentials: WBC_ERR_WINBIND_NOT_AVAILABLE

Could not check secret

Will try to figure this out and fix it.

For the moment, thanks for this hint!

Best regards

Dominic

[Ryan_Yacobucci]

Hello,

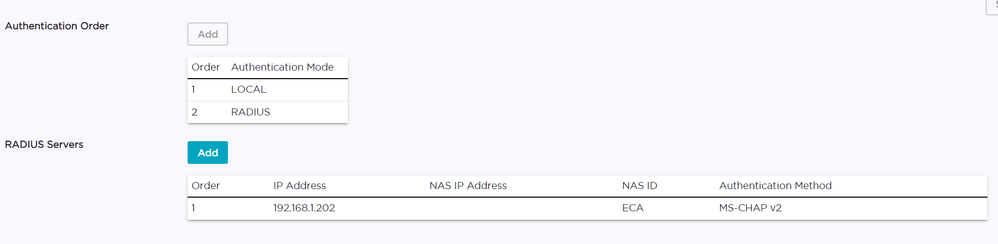

I set it up using XCC controller using MS-CHAPV2 authentication:

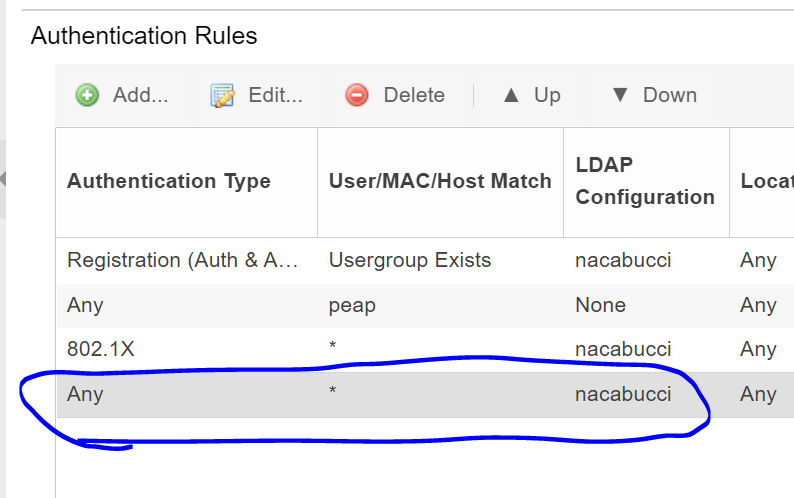

Make sure your Control AAA configuration has a line to handle either "Management" auth type or "*":

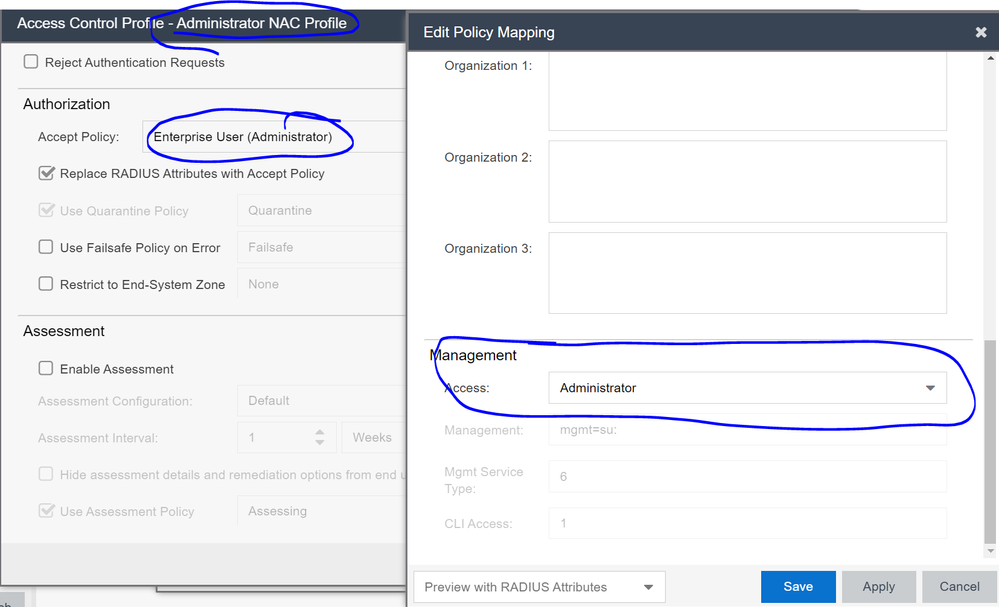

Then make sure there is a rule that provides the correct authorization string for management access:

When you set the AAA line up for "LDAP Authentication" NAC should attempt to join the domain controller on enforce, it will also attempt to join on services restart:

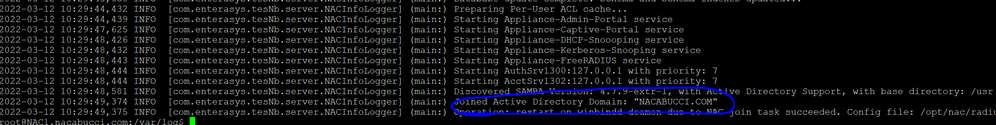

You can check the /var/log/tag.log to see if there was a domain join failure or success:

If domain join fails, check permissions:

https://extremeportal.force.com/ExtrArticleDetail?an=000090980

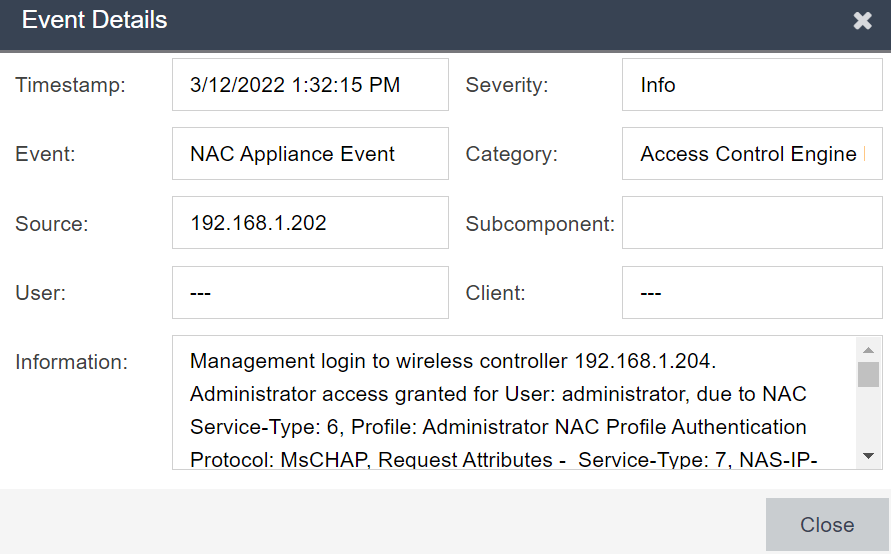

You can check the status of the management login if you go to Alarms/Events  --> Type Access Control/NAC



Let me know if any of this helps.

Thanks
-Ryan

[DominicS]

Hi Ryan

sorry for letting you wait on this topic, but for the moment: thanks a lot for your detailed help.

I was not yet able to analyze / test it, but wanted to get sure you got the appreciation you deserve 🙂

I will keep the post updated, as soon as I can find the time to test it.

Best regards
Dominic
