Does the X590 support LRM optics?

[davidj_cogliane]

We recently found the data sheet for the X590 which could be a very attractive solution if it supports LRM optics.

We know not all SFP+ ports include the phy necessary to support LRMs which becomes an issue for customers trying to 10G over old MM fiber.

Thanks,

[davidj_cogliane]

Karthik,

When you provide answers about things you don't know the answers too it causes confusion which is not helpful and could even be harmful the customers and the brand. Fortunately I have additional resources and try to fact check everything, someone else may have read your post and ordered a 690, 590, 460-G2, or 620 only to find out it didn't work in their environment.

My understanding is the the 460-G2 does not support LRMs on the native 10G ports only on the ports in the optional Summit X460-G2 VIM-2x add-on card.

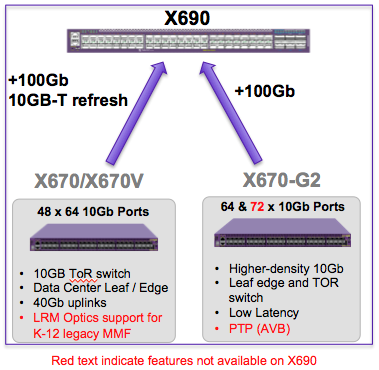

We found a document from Extreme that shows the 690 does not support LRMs.

From discussions we had last year I do not believe the 620 supports LRMs either, though I have no documentation one way or the other.

The 440-G2 supports LRMs only on the 48p models according to the data sheet.

The 450-G2 supports LRMs on all 10G models to the best of my knowledge.

[Drew_C]

David, thanks for the follow up on this and coming back with complete information. I've removed the incorrect information to prevent confusion when others come along to browse.

[Stephane_Grosj1]

Hi,

I'm afraid the x590, as most of the other EXOS models, do not support natively LRM. Those are PHYless designs. There is 1 recent model of the x460G2 that will support it on half of their port, as they have the PHY. If you are looking for a couple of ports to support LRM, a solution should be made available "soon", for any model.

Edit: I correct myself, that statement on x460G2 was for MACSec capability, not LRM, which is for 10G ports.

[davidj_cogliane]

Any word on the add on to support LRMs.
