Extreme Switch x670 bandwidth limited to 3g insted of 10g

[philippe_page]

I would like to ask some question regarding our switch. I am testing the bandwidth of our switch. It is currently configured with 10g without any limits on its egress and ingress. However I am only able to get 3g bandwidth instead of 10g. I'll attach the port info detail here for further details:


Slot-1 switch # show port 1:33 info detail
Port: 1:33
Virtual-router: VR-Default
Type: SF+_UNKNOWN (Unsupported)
Random Early drop: Unsupported
Admin state: Enabled with 10G full-duplex
Link State: Active, 10Gbps, full-duplex
Link Ups: 3 Last: Tue Jun 11 21:04:52 2019
Link Downs: 2 Last: Tue Jun 11 21:02:55 2019

VLAN cfg:
Name: storage-net, 802.1Q Tag = 1006, MAC-limit = No-limit, Virtual router: VR-Default
Port-specific VLAN ID: 1006
Name: storage-net2, 802.1Q Tag = 2006, MAC-limit = No-limit, Virtual router: VR-Default
Port-specific VLAN ID: 2006
STP cfg:

Protocol:
Trunking: Master port with 2 members using algorithm address based - L3_L4
algorithm
Members: 1:33,2:33

EDP: Enabled

ELSM: Disabled
Ethernet OAM: Disabled
Learning: Enabled
Unicast Flooding: Enabled
Multicast Flooding: Enabled
Broadcast Flooding: Enabled
Jumbo: Disabled
Flow Control: Rx-Pause: Enabled Tx-Pause: Disabled
Priority Flow Control: Disabled
Reflective Relay: Disabled
Link up/down SNMP trap filter setting: Enabled
Egress Port Rate: No-limit
Broadcast Rate: No-limit
Multicast Rate: No-limit
Unknown Dest Mac Rate: No-limit
QoS Profile: None configured
Ingress Rate Shaping : Unsupported
Ingress IPTOS Examination: Disabled
Ingress 802.1p Examination: Enabled
Ingress 802.1p Inner Exam: Disabled
Ingress 802.1p Priority: 0
Egress IPTOS Replacement: Disabled
Egress 802.1p Replacement: Disabled
NetLogin: Disabled
NetLogin port mode: Port based VLANs
Smart redundancy: Enabled
Software redundant port: Disabled
IPFIX: Disabled Metering: Ingress, All Packets, All Traffic
IPv4 Flow Key Mask: SIP: 255.255.255.255 DIP: 255.255.255.255
IPv6 Flow Key Mask: SIP: ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff
DIP: ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff

Far-End-Fault-Indication: Disabled
Shared packet buffer: default
VMAN CEP egress filtering: Disabled
Isolation: Off
PTP Configured: Disabled
Time-Stamping Mode: None
Synchronous Ethernet: Unsupported
Dynamic VLAN Uplink: Disabled
VM Tracking Dynamic VLANs: Disabled

[BradP]

Do you have a lot of experience with iperf? I know there are ways to configure it to make sure it really tests throughput. Also, do other ports in your network perform at 10 with the same iperf setup?

[philippe_page]

[philippe_page]

# show version
Slot-1 : 800546-00-08 1628N-44360 Rev 8.0 BootROM: 1.0.2.1 IMG: 16.2.1.6
Slot-2 : 800546-00-08 1629N-48855 Rev 8.0 BootROM: 1.0.2.1 IMG: 16.2.1.6
Slot-3 :
Slot-4 :
Slot-5 :
Slot-6 :
Slot-7 :
Slot-8 :

Image : ExtremeXOS version 16.2.1.6 by release-manager
on Sat Aug 6 19:06:56 EDT 2016
BootROM : 1.0.2.1
Diagnostics : 5.4




Im using the same extreme switch for different racks. I still cant seem to identify what is causing this issue. I've look into auto negotiation and jumbo frames but still bandwidth is still limited to 3g instead of 10g

[BradP]

What version? We used to have a licence for 10G for unsupported optics, but that has since been removed in more recent versions of code

[philippe_page]

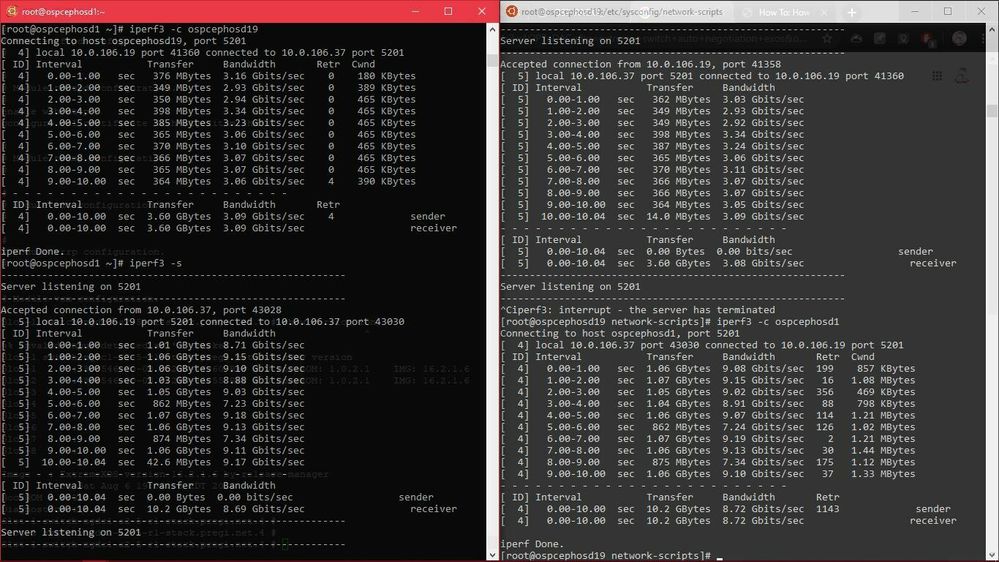

Im using iperf3 on our servers connected to the switch. From one rack to the other. It is weird because when I am testing inter rack bandwidth it was able to show 10g but when I am testing on 1 rack it is limited to 3g only. I am looking for some difference in the switch configuration and I was able to find out that there are jumbo configured on the other switch. I was able to configure it also on the switch which was limiting me to only 3gb but I still get the same results.
