how can i connect my VM to securecrt or putty ?

how can i connect my VM to securecrt or putty ?

Ala_Eddine_Chhi
New Contributor
Hi,

I want to connect my VM through securecrt or putty but i didn't get a direct way.could you help me please ?

thanks
12 REPLIES 12

Matthew_Helm1
Extreme Employee

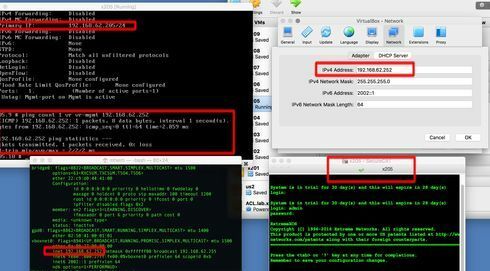

8916ee959f284afb881ce5998a48eae5_RackMultipart20160722-22588-15wndjq-pingtelnet2vboxexosvm_inline.jpg



Hope this helps.

Zsolt
Extreme Employee
Hi,

What program are you using to emulate EXOS?

For example, if you are using VirtualBox you need IP connectivity between your PC and the VM. Then you can connect directly from your PC terminal.

Best Regards,
Zsolt

if you're using VirtualBox, I would recommend you to set Adapter 1 as "Host-only adapter" and use "VirtualBox Host-Only Ethernet Adapter". Choose adapter type as "Intel PRO/1000 MT Desktop".

You need to have in VirtualBox, in File > Preferences > Network a Host-only Network defined.

Set the IP address of the Mgmt vlan in that network as well, and you should be able to telnet/ssh/scp... from any tool on your laptop.
