Hi guys,

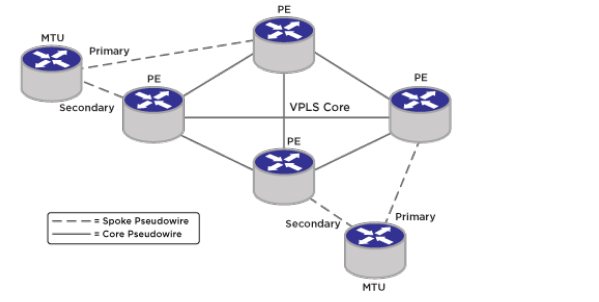

I have the following setup:

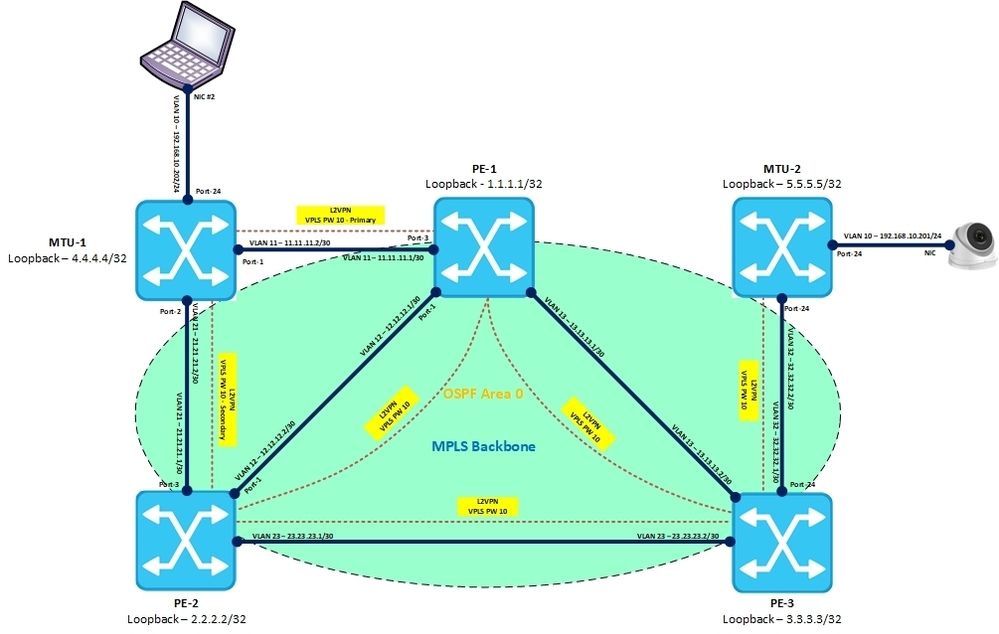

What I’m trying to achieve is the following setup:
At the moment I have a full OSPF and MPLS-LDP network between the switches.
I also have some of the PW VPLS tunnels at “up” state.
For some reason, traffic won’t reach it’s destination from the MTU/PEs to the other sites (from the camera to the laptop).
I’m attaching the configurations:
PE-1 Switch
#
# Module vlan configuration.
#
configure vlan default delete ports all
configure vr VR-Default delete ports 1-34
configure vr VR-Default add ports 1-34
create vlan "loopback"
enable loopback-mode vlan loopback
create vlan "PE1-MTU1-P2P"
configure vlan PE1-MTU1-P2P tag 11
create vlan "PE1-PE2-P2P"
configure vlan PE1-PE2-P2P tag 12
create vlan "PE1-PE3-P2P"
configure vlan PE1-PE3-P2P tag 13
configure ports 29 auto off speed 10000 duplex full
configure ports 30 auto off speed 10000 duplex full
configure ports 31 auto off speed 10000 duplex full
configure ports 32 auto off speed 10000 duplex full
configure ports 33 auto off speed 10000 duplex full
configure ports 34 auto off speed 10000 duplex full
configure vlan Default add ports 1-34 untagged
configure vlan PE1-MTU1-P2P add ports 3 tagged
configure vlan PE1-PE2-P2P add ports 1 tagged
configure vlan PE1-PE3-P2P add ports 2 tagged
configure vlan loopback ipaddress 1.1.1.1 255.255.255.255
enable ipforwarding vlan loopback
configure vlan PE1-PE2-P2P ipaddress 12.12.12.1 255.255.255.252
enable ipforwarding vlan PE1-PE2-P2P
configure vlan PE1-PE3-P2P ipaddress 13.13.13.1 255.255.255.252
enable ipforwarding vlan PE1-PE3-P2P
configure vlan PE1-MTU1-P2P ipaddress 11.11.11.1 255.255.255.252
enable ipforwarding vlan PE1-MTU1-P2P
# Module mpls configuration.
#
configure mpls add vlan "loopback"
enable mpls vlan "loopback"
enable mpls ldp vlan "loopback"
configure mpls add vlan "PE1-MTU1-P2P"
enable mpls vlan "PE1-MTU1-P2P"
enable mpls ldp vlan "PE1-MTU1-P2P"
configure mpls add vlan "PE1-PE2-P2P"
enable mpls vlan "PE1-PE2-P2P"
enable mpls ldp vlan "PE1-PE2-P2P"
configure mpls add vlan "PE1-PE3-P2P"
enable mpls vlan "PE1-PE3-P2P"
enable mpls ldp vlan "PE1-PE3-P2P"
configure mpls lsr-id 1.1.1.1
enable mpls protocol ldp
enable mpls
create l2vpn vpls MayPatents fec-id-type pseudo-wire 10
configure l2vpn vpls MayPatents add peer 4.4.4.4 spoke
configure l2vpn vpls MayPatents add peer 3.3.3.3 core full-mesh
configure l2vpn vpls MayPatents add peer 2.2.2.2 core full-mesh
# Module ospf configuration.
#
configure ospf routerid 1.1.1.1
enable ospf
configure ospf add vlan loopback area 0.0.0.0 passive
configure ospf add vlan PE1-MTU1-P2P area 0.0.0.0 link-type point-to-point
configure ospf add vlan PE1-PE2-P2P area 0.0.0.0 link-type point-to-point
configure ospf add vlan PE1-PE3-P2P area 0.0.0.0 link-type point-to-point
PE-2 Switch
# Module vlan configuration.
#
configure vlan default delete ports all
configure vr VR-Default delete ports 1-34
configure vr VR-Default add ports 1-34
create vlan "loopback"
enable loopback-mode vlan loopback
create vlan "PE2-MTU1-P2P"
configure vlan PE2-MTU1-P2P tag 21
create vlan "PE2-PE1-P2P"
configure vlan PE2-PE1-P2P tag 12
create vlan "PE2-PE3-P2P"
configure vlan PE2-PE3-P2P tag 23
configure ports 29 auto off speed 10000 duplex full
configure ports 30 auto off speed 10000 duplex full
configure ports 31 auto off speed 10000 duplex full
configure ports 32 auto off speed 10000 duplex full
configure ports 33 auto off speed 10000 duplex full
configure ports 34 auto off speed 10000 duplex full
configure vlan Default add ports 1-34 untagged
configure vlan PE2-MTU1-P2P add ports 3 tagged
configure vlan PE2-PE1-P2P add ports 1 tagged
configure vlan PE2-PE3-P2P add ports 2 tagged
configure vlan loopback ipaddress 2.2.2.2 255.255.255.255
enable ipforwarding vlan loopback
configure vlan PE2-PE1-P2P ipaddress 12.12.12.2 255.255.255.252
enable ipforwarding vlan PE2-PE1-P2P
configure vlan PE2-PE3-P2P ipaddress 23.23.23.1 255.255.255.252
enable ipforwarding vlan PE2-PE3-P2P
configure vlan PE2-MTU1-P2P ipaddress 21.21.21.1 255.255.255.252
enable ipforwarding vlan PE2-MTU1-P2P
# Module mpls configuration.
#
configure mpls add vlan "loopback"
enable mpls vlan "loopback"
enable mpls ldp vlan "loopback"
configure mpls add vlan "PE2-MTU1-P2P"
enable mpls vlan "PE2-MTU1-P2P"
enable mpls ldp vlan "PE2-MTU1-P2P"
configure mpls add vlan "PE2-PE1-P2P"
enable mpls vlan "PE2-PE1-P2P"
enable mpls ldp vlan "PE2-PE1-P2P"
configure mpls add vlan "PE2-PE3-P2P"
enable mpls vlan "PE2-PE3-P2P"
enable mpls ldp vlan "PE2-PE3-P2P"
configure mpls lsr-id 2.2.2.2
enable mpls protocol ldp
enable mpls
create l2vpn vpls MayPatents fec-id-type pseudo-wire 10
configure l2vpn vpls MayPatents add peer 4.4.4.4 spoke
configure l2vpn vpls MayPatents add peer 3.3.3.3 core full-mesh
configure l2vpn vpls MayPatents add peer 1.1.1.1 core full-mesh
# Module ospf configuration.
#
configure ospf routerid 2.2.2.2
enable ospf
configure ospf add vlan loopback area 0.0.0.0 passive
configure ospf add vlan PE2-MTU1-P2P area 0.0.0.0 link-type point-to-point
configure ospf add vlan PE2-PE1-P2P area 0.0.0.0 link-type point-to-point
configure ospf add vlan PE2-PE3-P2P area 0.0.0.0 link-type point-to-point
PE-3 Switch
# Module vlan configuration.
#
configure vlan default delete ports all
configure vr VR-Default delete ports 1-34
configure vr VR-Default add ports 1-34
create vlan "InterComm"
configure vlan InterComm tag 10
create vlan "loopback"
enable loopback-mode vlan loopback
create vlan "PE3-MTU2-P2P"
configure vlan PE3-MTU2-P2P tag 32
create vlan "PE3-PE1-P2P"
configure vlan PE3-PE1-P2P tag 13
create vlan "PE3-PE2-P2P"
configure vlan PE3-PE2-P2P tag 23
configure ports 29 auto off speed 10000 duplex full
configure ports 30 auto off speed 10000 duplex full
configure ports 31 auto off speed 10000 duplex full
configure ports 32 auto off speed 10000 duplex full
configure ports 33 auto off speed 10000 duplex full
configure ports 34 auto off speed 10000 duplex full
configure vlan Default add ports 1-34 untagged
configure vlan InterComm add ports 24 tagged
configure vlan PE3-MTU2-P2P add ports 3 tagged
configure vlan PE3-PE1-P2P add ports 1 tagged
configure vlan PE3-PE2-P2P add ports 2 tagged
configure vlan PE3-PE1-P2P ipaddress 13.13.13.2 255.255.255.252
enable ipforwarding vlan PE3-PE1-P2P
configure vlan loopback ipaddress 3.3.3.3 255.255.255.255
enable ipforwarding vlan loopback
configure vlan PE3-PE2-P2P ipaddress 23.23.23.2 255.255.255.252
enable ipforwarding vlan PE3-PE2-P2P
configure vlan PE3-MTU2-P2P ipaddress 32.32.32.1 255.255.255.252
enable ipforwarding vlan PE3-MTU2-P2P
# Module mpls configuration.
#
configure mpls add vlan "loopback"
enable mpls vlan "loopback"
enable mpls ldp vlan "loopback"
configure mpls add vlan "PE3-MTU2-P2P"
enable mpls vlan "PE3-MTU2-P2P"
enable mpls ldp vlan "PE3-MTU2-P2P"
configure mpls add vlan "PE3-PE1-P2P"
enable mpls vlan "PE3-PE1-P2P"
enable mpls ldp vlan "PE3-PE1-P2P"
configure mpls add vlan "PE3-PE2-P2P"
enable mpls vlan "PE3-PE2-P2P"
enable mpls ldp vlan "PE3-PE2-P2P"
configure mpls lsr-id 3.3.3.3
enable mpls protocol ldp
enable mpls
create l2vpn vpls MayPatents fec-id-type pseudo-wire 10
configure l2vpn vpls MayPatents add service vlan InterComm
configure l2vpn vpls MayPatents add peer 1.1.1.1 core full-mesh
configure l2vpn vpls MayPatents add peer 2.2.2.2 core full-mesh
configure l2vpn vpls MayPatents add peer 5.5.5.5 spoke
# Module ospf configuration.
#
configure ospf routerid 3.3.3.3
enable ospf
configure ospf add vlan loopback area 0.0.0.0 passive
configure ospf add vlan PE3-MTU2-P2P area 0.0.0.0 link-type point-to-point
configure ospf add vlan PE3-PE1-P2P area 0.0.0.0 link-type point-to-point
configure ospf add vlan PE3-PE2-P2P area 0.0.0.0 link-type point-to-point
MTU-1 Switch
# Module vlan configuration.
#
configure vlan default delete ports all
configure vr VR-Default delete ports 1-34
configure vr VR-Default add ports 1-34
configure vlan default delete ports 1-34
create vlan "loopback"
enable loopback-mode vlan loopback
create vlan "Monitor"
configure vlan Monitor tag 10
create vlan "MTU1-PE1-P2P"
configure vlan MTU1-PE1-P2P tag 11
create vlan "MTU1-PE2-P2P"
configure vlan MTU1-PE2-P2P tag 21
configure ports 29 auto off speed 10000 duplex full
configure ports 30 auto off speed 10000 duplex full
configure ports 31 auto off speed 10000 duplex full
configure ports 32 auto off speed 10000 duplex full
configure ports 33 auto off speed 10000 duplex full
configure ports 34 auto off speed 10000 duplex full
configure vlan Monitor add ports 24 tagged
configure vlan Monitor add ports 3 untagged
configure vlan MTU1-PE1-P2P add ports 1 tagged
configure vlan MTU1-PE2-P2P add ports 2 tagged
configure vlan loopback ipaddress 4.4.4.4 255.255.255.255
enable ipforwarding vlan loopback
configure vlan MTU1-PE1-P2P ipaddress 11.11.11.2 255.255.255.252
enable ipforwarding vlan MTU1-PE1-P2P
configure vlan MTU1-PE2-P2P ipaddress 21.21.21.2 255.255.255.252
enable ipforwarding vlan MTU1-PE2-P2P
# Module mpls configuration.
#
configure mpls add vlan "loopback"
enable mpls vlan "loopback"
enable mpls ldp vlan "loopback"
configure mpls add vlan "MTU1-PE1-P2P"
enable mpls vlan "MTU1-PE1-P2P"
enable mpls ldp vlan "MTU1-PE1-P2P"
configure mpls add vlan "MTU1-PE2-P2P"
enable mpls vlan "MTU1-PE2-P2P"
enable mpls ldp vlan "MTU1-PE2-P2P"
configure mpls lsr-id 4.4.4.4
enable mpls protocol ldp
enable mpls
create l2vpn vpls MayPatents fec-id-type pseudo-wire 10
configure l2vpn vpls MayPatents add service vlan Monitor
configure l2vpn vpls MayPatents add peer 1.1.1.1 core primary
configure l2vpn vpls MayPatents add peer 2.2.2.2 core secondary
configure ospf routerid 4.4.4.4
enable ospf
configure ospf add vlan loopback area 0.0.0.0 passive
configure ospf vlan loopback cost 1
configure ospf add vlan MTU1-PE1-P2P area 0.0.0.0 link-type point-to-point
configure ospf add vlan MTU1-PE2-P2P area 0.0.0.0 link-type point-to-point
MTU-2 Switch
# Module vlan configuration.
#
configure vlan default delete ports all
configure vr VR-Default delete ports 1-34
configure vr VR-Default add ports 1-34
configure vlan default delete ports 1-34
create vlan "loopback"
enable loopback-mode vlan loopback
create vlan "Monitor"
configure vlan Monitor tag 10
create vlan "MTU2-PE3-P2P"
configure vlan MTU2-PE3-P2P tag 32
configure ports 29 auto off speed 10000 duplex full
configure ports 30 auto off speed 10000 duplex full
configure ports 31 auto off speed 10000 duplex full
configure ports 32 auto off speed 10000 duplex full
configure ports 33 auto off speed 10000 duplex full
configure ports 34 auto off speed 10000 duplex full
configure vlan Monitor add ports 1-2 tagged
configure vlan MTU2-PE3-P2P add ports 24 tagged
configure vlan loopback ipaddress 5.5.5.5 255.255.255.255
enable ipforwarding vlan loopback
configure vlan MTU2-PE3-P2P ipaddress 32.32.32.2 255.255.255.252
enable ipforwarding vlan MTU2-PE3-P2P
# Module mpls configuration.
#
configure mpls add vlan "loopback"
enable mpls vlan "loopback"
enable mpls ldp vlan "loopback"
configure mpls add vlan "MTU2-PE3-P2P"
enable mpls vlan "MTU2-PE3-P2P"
enable mpls ldp vlan "MTU2-PE3-P2P"
configure mpls lsr-id 5.5.5.5
enable mpls protocol ldp
enable mpls
create l2vpn vpls MayPatents fec-id-type pseudo-wire 10
configure l2vpn vpls MayPatents add service vlan Monitor
configure l2vpn vpls MayPatents add peer 3.3.3.3 core full-mesh
configure ospf routerid 5.5.5.5
enable ospf
configure ospf add vlan loopback area 0.0.0.0 passive
configure ospf add vlan MTU2-PE3-P2P area 0.0.0.0 link-type point-to-point
