L3 and L2 Connection issue

[usman869]

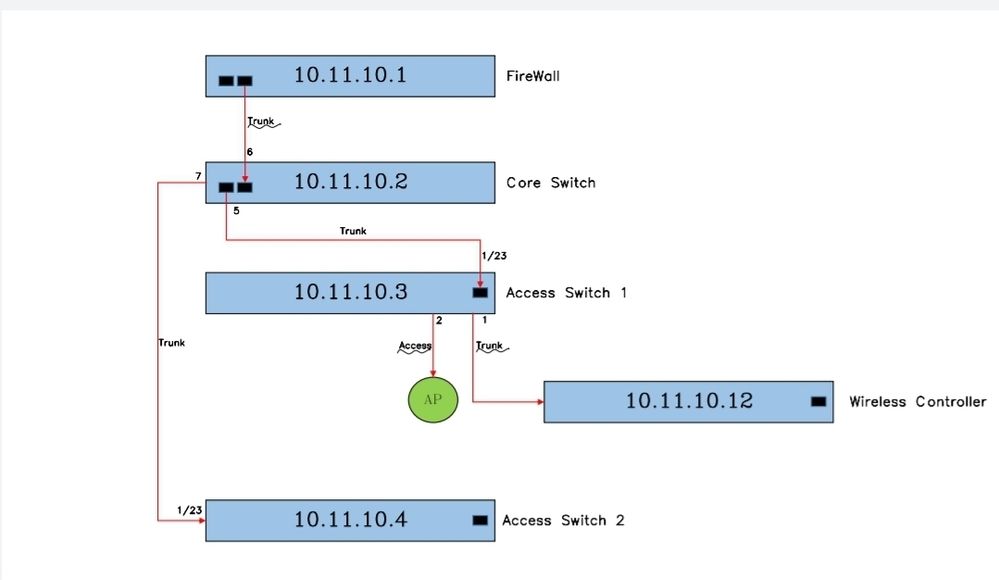

I have one x590 core I configureed vlans and defined the DHCP and vlan IPS

I have three stacked ers3626 and I configured vlans on them and used as L2

I cannot reach the core.

Any steps I just want to have a data vlan in L2 and route the traffic to internet via core to fw and ISP.

[Stefan_K_ · Accepted solution]

Hello,

did you enable ipforwarding on X590?

are the vlans tagged on Ports 5 and 7?

can you do a „show vlan“ on one of the vlans and share the output?
can you share the output of „show conf vlan“?

best regards

Stefan

[usman869]
