100G Stacking over 10KM

100G Stacking over 10KM

StacK
New Contributor

Hi community,

I have some doubts which I would like to discuss with you and maybe get the confirmation from someone who already done it.

I would like to Stack two x690 using 100G QSFP28 (not DAC Cable). The reason is simple - I need to Stack them over greather distance (less than 10 KM) between two different Datacenters where I only have SingleMode connections.

I found different information in Extreme Documentations, thats why I would like confirmation from someone who did it.

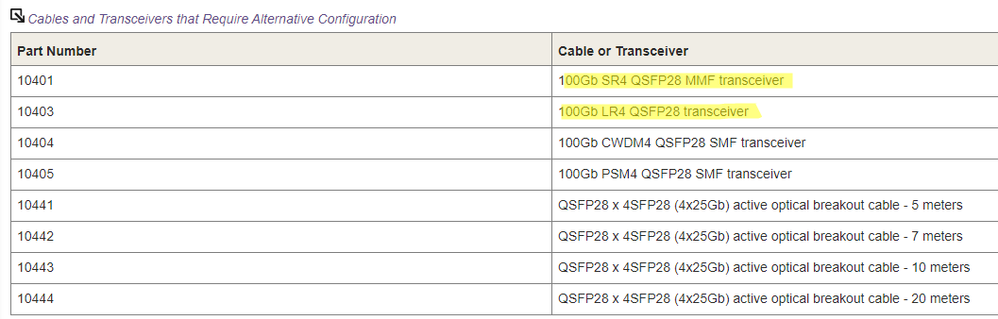

https://documentation.extremenetworks.com/summit/GUID-CD79BCDB-A801-43F8-8A55-E7345FEAA6A9.shtml




 As we can see, there is no Max distance for the listed 100G GBIC.

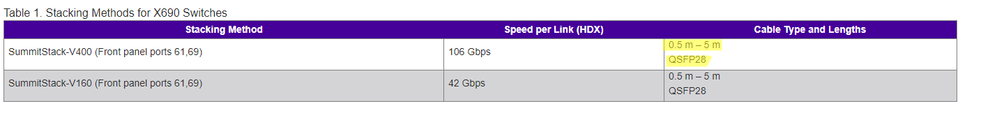

On the other hand, I found Extreme Documentations where it is stated only til 5 meters.

https://documentation.extremenetworks.com/extremeswitching/GUID-FEBCE99A-99FA-4AEA-A932-46A808CEEB2A...






Can someone please help?

Many thanks in advance

Kind Regards

1 ACCEPTED SOLUTION

StephenW
Extreme Employee

I have seen a stack slots separated by 23 miles and it worked fine.  If it was me I would come up with another right answer.  Having stack nodes that far apart could be difficult to support if the stack where to become unstable for any reason.

View solution in original post

1 REPLY 1

StephenW
Extreme Employee

I have seen a stack slots separated by 23 miles and it worked fine.  If it was me I would come up with another right answer.  Having stack nodes that far apart could be difficult to support if the stack where to become unstable for any reason.
