X670 version 16.2.5.4 trying to connect Router

[Guruprasanth]

Dear Community,"@Sam Pirok"

            The Extreme switch X670 has done configured with 3 VLAN’S and the 4th VLAN is connected to a router.

The IP Range for 192.168.11.1 , 192.168.12.1 , 192.168.13.1  and the router has 192.168.0.1.

Done the command for IP Forwarding but still my router D-link is not pinging.

Please help me to solve the issue to connect the Switch to INTERNET.

Thanks in Advance.

[Guruprasanth]

Dear Community,"@Sam Pirok"

      Thanks for the response.Currently the EXTREME Switch is only available and is directly connnected to the 777VR1 (BEETEL) router.

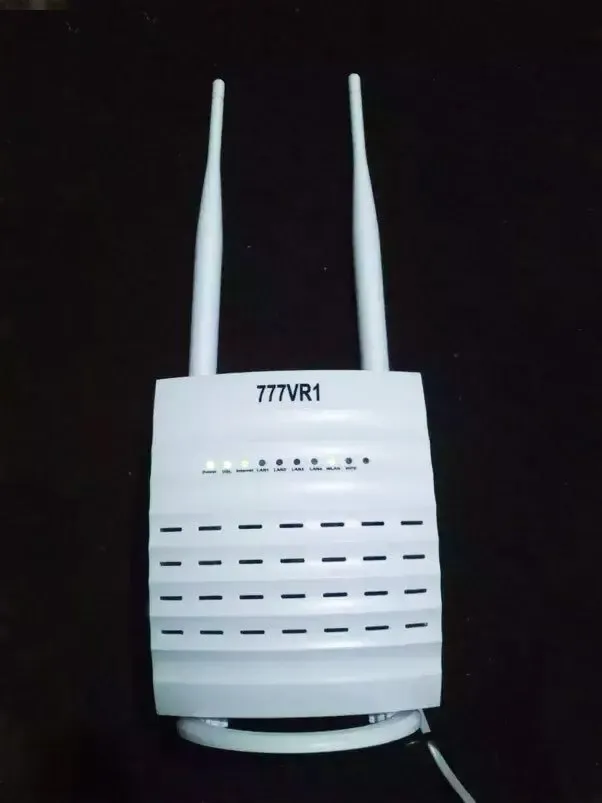

BEETEL ROUTER

I have connected the switch through another router TP-LINK and is working local connectivity.But while connecting the Internet the switch is not communicating with the router.

[SamPirok · Accepted solution]

I’ll need to run this by our EXOS team, but could you tell me how many hops there are between the X670 and the router? Do you have any other switches you could connect to the router as a test to see if the router is having any issues?
