Hi Community
Perhpas someone can point me in the right direction.
We want to connect two VSP7400 switches to each other with 100Gbps.
Each of the VSP7400's has a 100GBASE-SR4 (MPO Connector) (Part Code AA1405005-E6) Gbic installed
The two switches is located in different rooms in the campus (50 Meters apart).
The two rooms are connected via Multimode Fiber.

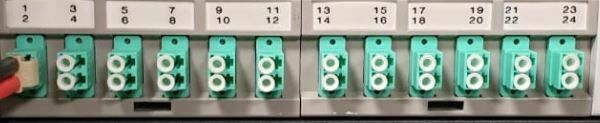

The fiber terminates on a LC patch panel in each room as can be seen below:
![0eef6bcb8a024eb5912fedc1d7acb92e_435cc1f9-895d-4010-8bb5-5eb9c912f052.jpg 0eef6bcb8a024eb5912fedc1d7acb92e_435cc1f9-895d-4010-8bb5-5eb9c912f052.jpg](/t5/image/serverpage/image-id/5959i0806B69092C8A385/image-size/large?v=v2&px=999)
What cable do I use between the switch and the LC Multimode Patch pannel in each room to connect the two switches at 100Gbps.
I was looking at Part Code 10332 - MPO to 4xLC OM4 MMF 5m cable.
But reading specs it seems that this cable is a breakout cable, dividing the 100Gbps into 4 seperate 25Gbps ports.

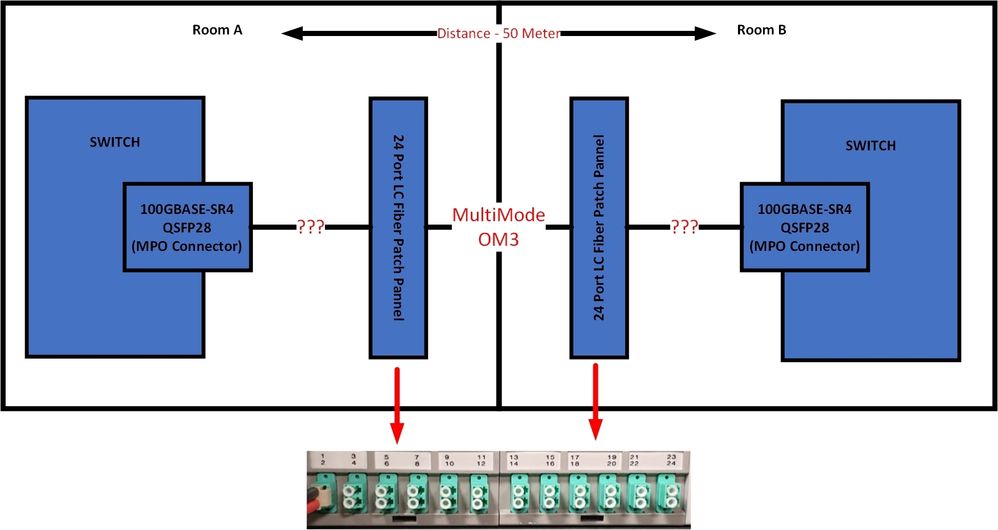

Below is an overview of what I am trying to do....
What cable do I use?
Can I use the above breakout cable on both sides?
![0eef6bcb8a024eb5912fedc1d7acb92e_3d873046-f708-463f-b727-39678dfe0d80.jpg 0eef6bcb8a024eb5912fedc1d7acb92e_3d873046-f708-463f-b727-39678dfe0d80.jpg](/t5/image/serverpage/image-id/4094i897D3F75F2CD316A/image-size/large?v=v2&px=999)
