Connected wireless clients are not shown in NAC's End-Systems

[Ilya_Semenov]

Hello, team,

I have Netsight (7.1.1.9), NAC (7.1.1.9) and V2110 (10.43) installation. Both NAC and V2110 were added to Netsight console using SNMP v3 and they are OK (green).

Now I try to configure wireless users authorization through the NAC.

The problem is wireless clients are not shown in NAC's End-Systems tab, but they are in Wireless tab. When they connect to SSID they get TO NAC's portal interface, then they pass authorization with they AD credentials and then NAC freezes with Endless registration. Experienced guys say: bring you clients to NAC's End-Systems tab first. How? They don't appear there.

What most likely could be the problem?

Many thanks in advance,
Ilya

[Ostrovsky__Yury]

What is .1.111? Which port of EWC? Looks like the Radius request coming not from the port which NAC expecting. Peobably you added EWC with IP address of esa0 but your radius req coming from Admin port? Or something like that.

[Ilya_Semenov]

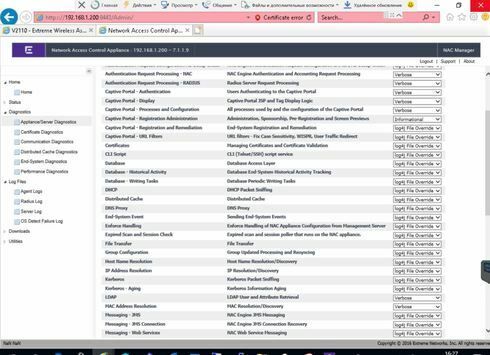

Yury,

is it enough?

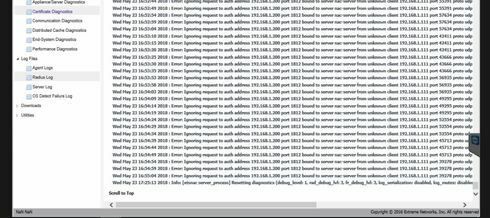

Before turning this on I had such messages in Radius Log:

Does it make something clear?

[Bartek]

Did you add V2110 to NAC switch configurations tab? If not then it would never work...

[Ilya_Semenov]

After your advice I've added EWC to NAC to Switches tab. Still the same result - nothing in End-Systems and endless registration...

[Bartek]

Hi,
As the Scott said RADIUS settings are crucial. If V2110 is added to Policy Domain and NAC and enforced then RADIUS settings should be populated in V2110. In addition make sure that both V2110 and NAC have time synchronized to let the wireless clients reauthentication to work - both appliances should use this same NTP server configruation.
RegardsBartek
