Radius Authentication configuring switch x440 as a client in NPS-Windows Server 2008 Enterprise.

[Helio_Jose_Erha]

Good afternoon.
I trying to accomplish Radius authentication, configuring switch x440 as a client in NPS-Windows Server 2008 Enterprise.
How should the settings on XOS and the NPS?
We have already used successfully authenticating switches EOS.
I thank the support.

[dflouret]

Helio,

Did you restart NPS server? Changes don't usually take effect until you restart the server.

To stop it, right click on the NPS server name and select Stop NPS Service.

To restart, do the same but now the option will say Start NPS Service.

[dflouret]

Jose,

VSA 201 (Extreme-CLI-Authorization) set to Enable in Screenshot 2 forces EXOS to send each command to the RADIUS server for checking it against a profile to see if the user is authorized to issue that command or not. This feature is only available with a modified FreeRadius server.

Either delete this VSA or set it to 0 (Disable).

What you need to include in your user profile is the default Radius attribute Service-Type set to Administrative...

[Helio_Jose_Erha]

Hi Henrique,

Yes, slot-1 is master node.

[Henrique]

Hi Helio, just a confirmation.

Is Slot-1 Stack Master node?

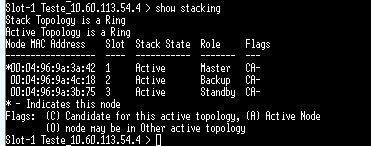

Can you please send a show stacking output?

[Helio_Jose_Erha]

Hi Henrique,

Unsuccessfully.

Other any suggestions ?

Thanks
