Hi Extreme experts,
I have a question regarding (Firewall friendly) External Captive Portal Redirection.
First my goal:
I need to integrate the Extreme Wireless Controller into an external Captive Portal System.
- The Portal System first needs a MAC Authentication Request via RADIUS (like Extreme NAC) - which is accepted.
- The Portal expects a URL-Request: "https://:8443/ahsfasdzfgfaszdfd&mac=00-11-22-33-44-55" where 00-11-22-33-44-55 is the MAC of the Client.
The Extreme Wireless Controller should do the following:
1) Send MAC Authentication Request to Portal-System
2) Redirect any HTTP/HTTPS request to "https://:8443/ahsfasdzfgfaszdfd&mac=00-11-22-33-44-55"
3) After successfull authentication the Role of the client should be changed via RADIUS-CoA.

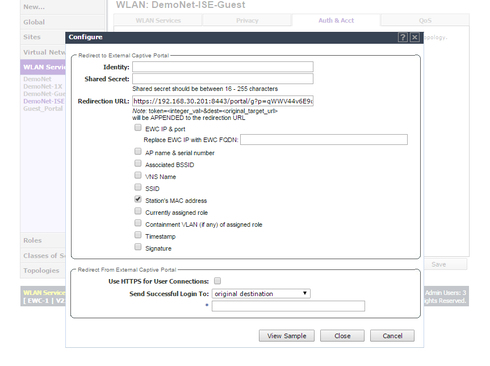

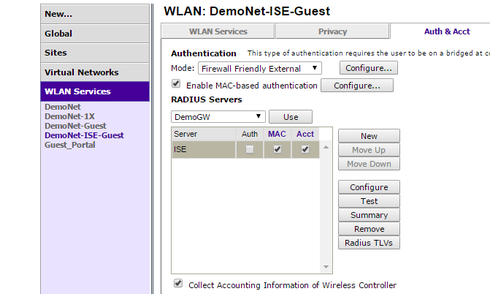

What I tried is the Firewall Friendly External Captive Portal with the following settings:
But unfortunately that configuration does not work.
1) If MAC Authentication is enabled no redirection is performed (The return Policy role is identical to the Unauthenticated Role in VNS settings). If I disable the MAC Authentication on the WLAN Service URL-Redirection is performed but with unexpected attributes:
Is there any way to disable the unwanted attributes dst, token and wlan?
How can I perform MAC Authentication and Redirection?
