WS-AI-DX02360

[Anand_Biniwale]

For AP3620 or AP 3825e, customer wants one antenna to be visible, and the AP will be placed inside the false-ceiling. Can we give WS-AI-DX02360? Does it provide dual-radio, with single connection to AP?

[Doug]

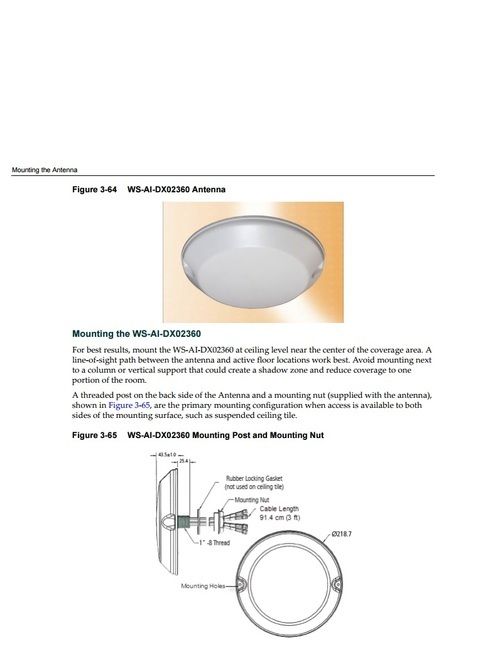

Pictures are usually in the antenna guides....

https://extranet.extremenetworks.com/downloads/Pages/dms.ashx?download=5b5ceb66-981b-450e-93dd-4c61d...

[Ronald_Dvorak]

Hi,

the antenna WS-AI-DX02360 is not certified for the AP36xx series - so you can't use it with this AP model.

You'd use the antenna on the AP3825 BUT it's a six-feed antenna = from the antenna you've 6 cables (already attached to the antenna) that you'd need to connect to the AP.
If you connect only one of the antenna cables to the AP you don't get dual-radio support and also only one rx/tx antenna with one stream.

http://learn.extremenetworks.com/rs/extreme/images/3825ie-Indoor-Access-Point-DS.pdf
WS-AI-DX02360 Indoor, 2.4GHz/5GHz, Six-feed, 2/2 dBi, Omni, Ceiling

-Ron

PS: It would be great if Extreme could provide a detailed phote of every antenna they sell on the web - I haven't found anything for this antenna model....
