AP 7161

AP 7161

Wicaksono_Arief
New Contributor
Hi All...
I have a question about Motorola Access Point 7161.
How to connect two device AP 7161 with 5GHz Frequency use WiNG 5.5 GUI ?
10 REPLIES 10

Tuan,

please open support case via Extreme Portal or by sending email to our inbox and we will check.

Thank you,
Ondrej

Hello Ondrej Lepa

I have updated successfully fw 5.8.6.5 for Ap7161, I have configured mcx as guide but not successful, can you help me through skype or teamview?

Thank you very much

Hi Tuan Nguyen, can I have your contact? my email: nghiatm79@gmail.com

Hello Tuan,

feel free to reach Portal page for WiNG Access Points (End of Sale)
If you are entitled to download from this page, you'll find following




Regards,
Ondrej

Ondrej_Lepa
Extreme Employee
Hi Wicaksono,

could you be a little more specific?
You are looking for a way to create wireless bridge between two APs, right?
For this we recommend to use MeshConnex policy (MCX) and map it as BSS1 on 5GHz enabled radio.

However I have WiNG 5.8 running the process is almost the same.

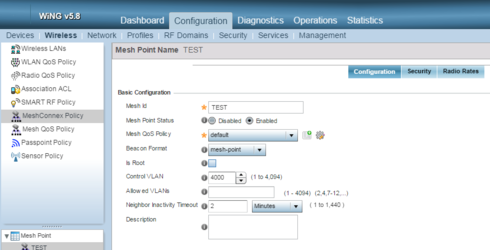

Go to Configuration - Wireless - MeshConnex Policy

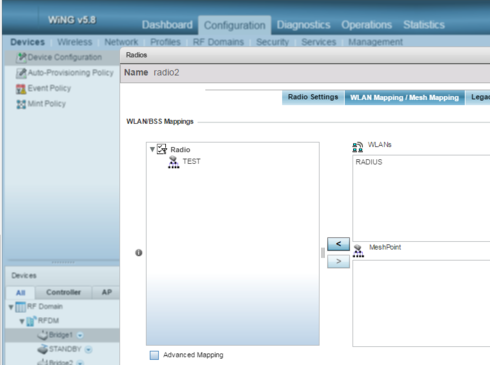

Then under Configuration - Devices / Profile - Interfaces - Radio2 - WLAN / MESH mapping assign the MCX you created




If you need more details please refer to WiNG 5.5 Reference Guide or take a look into MeshConnex Overview document available under following link

Edit: Here is document for Virtual Controller environment

Regards,
Ondrej
