How to factory reset WiNG AP 7522E?

[Albert_Loekito]

How to factory reset WiNG AP 7522E?

[Tamizharasan_Pa]

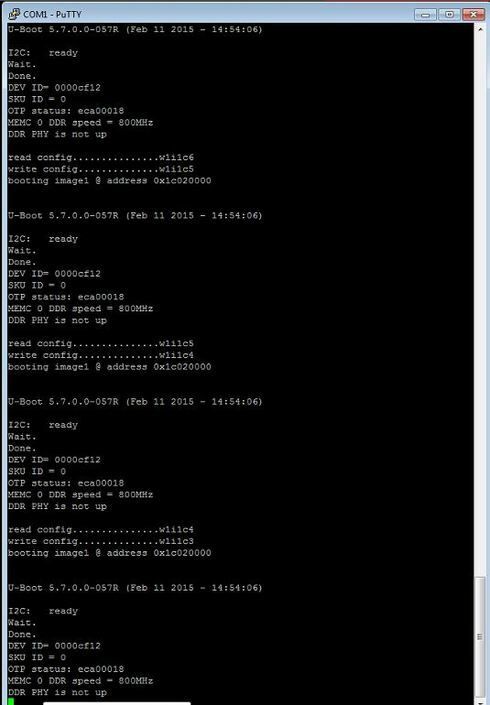

This is the sequence. I cant stop it or get in to cmd mode.

[Ondrej_Lepa]

Tamizharasan,

this is actually expected message (at least what you show on screenshot).
Could you give me the whole output from console with the looping sequence?

Regards,
Ondrej

[Christoph_S]

Hi Albert,

You can access the AP using putty.exe (http://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html).

Any console cable will work. If you don't have a serial connector on your computer then you will need a serial to USB adapter.

Once you've launched putty.exe, select the serial radio button (top right), enter 115200 in the speed field, make sure you are using the correct COM port, and hit "Open".

Reset per instructions above.

Regards,

Chris

[Albert_Loekito]

Hi Gerald,
do i need any software to access the AP via console ?
like you mention above how do i login to the AP ?

Thank you

[Christoph_S]

Hello Albert,

It all depends on whether the AP is accessible via the ge 1 port or not.

If it is, then either SSH into it and run the "delete startup-config" command or use the discovery tool with reset. If using this utility, make sure you reboot the AP first. You are only able to reset it within 10 minutes of the AP being up and running.

If the ge 1 port is locked (i. e. AP not accessible via the ge port) then your only other option would be to reset it through the console port using baud rate 115200 and the reset/FactoryDefault log in credentials.

Regards,

Chris
