MeshConnex link corruption - state "In Progress"

MeshConnex link corruption - state "In Progress"

Valter_Veiga
New Contributor III

Hello everybody

Platform Wing AP7662 and AP7632,  with external antenas.

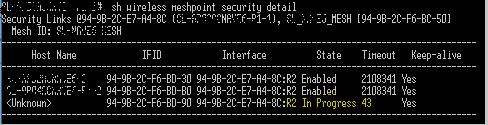

I’m having some meshconnex link corruptions, that i detect in the “sh wireless meshpoint security detail” in the state of “In Progress” in the NON-ROOT AP.

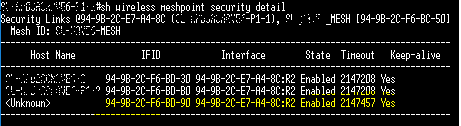

I the other hand the ROOT AP apear to be in the State “Enable”



After a “Shutdown/No Shutdown” of the Radio interface in the ROOT AP the state of the NON-ROOT is resolved. Also resolved with a AP reboot.




This is a small deploy with 2 ROOT and 2 NON-ROOT

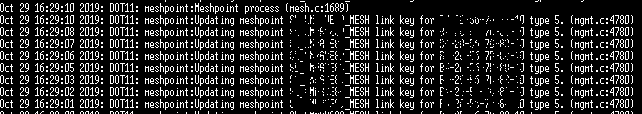

Every time the Timeout reaches “-1” there is a log message updating meshpoint link key type 0




How to can i capture this state change to “In Progress” ?



0 REPLIES 0
