RFS4000 adopts AP7562 and unadopts it instantly

RFS4000 adopts AP7562 and unadopts it instantly

Roman_Yusupov
New Contributor
Hello guys!
Can you help me with this question?
Im running RFS4000 and adopt 1 AP7562 as Root directly connected to RFS. When I try to adopt another AP via Mesh network, I see it adopted for 1 second and then it unadopts back. It happens continiously. AP doesn't even upload config from RFS. First AP works as usual.

Thank you!
17 REPLIES 17

ckelly
Extreme Employee
Can you show the configuration of the 2nd AP?

Are you able to console into the 2nd AP?

Roman_Yusupov
New Contributor
Hello Chris!
Yes, first AP7562 ("Office" on screen) is directly connected to the RFS and working in root mode.
Second one ("VMMtest" on screen) is non-root and trying to connect through first one to RFS.

Second AP configured manually by downloading config of first AP.

When AP try to adopts I can see it on RFS for a few seconds.

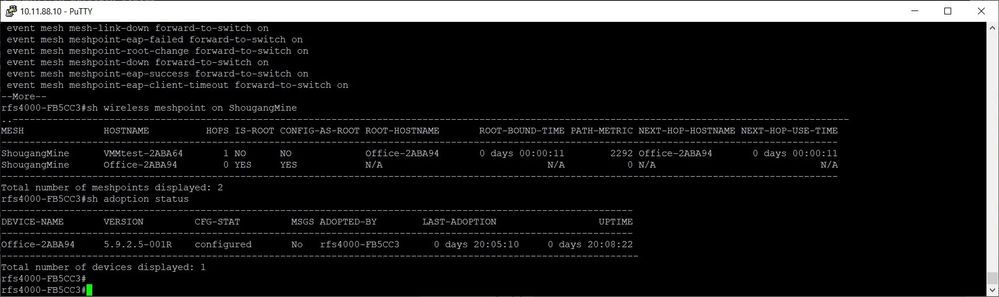

Here is screen.



WiNG 5.9.2.5
Thank you!

ckelly
Extreme Employee
First, I'm making as assumption here that because you refer to the 7562 as "root" that you are talking about Meshconnex and the 7562 is configured as a root node. Correct?

Also, please confirm that when you try to adopt another AP "via Mesh network" that you are manually configuring the other AP and then wanting it to form a mesh connection with the root node 7562 so that it can adopt.

When the AP adopts for 1 second and then unadopts- and then this happens continuously, are you saying that it continuously adopts and unadopts on its own? Or that it adopts and then unadopts....and then you have to reconfigure it again so that it has a mesh configuration?

Version of WiNG?
