what are types of acl supported in Wing express ap and i need that explanation

what are types of acl supported in Wing express ap and i need that explanation

Saravanamurthy_
Contributor
what are types of acl supported in Wing express ap and i need that explanation
3 REPLIES 3

Saravanamurthy_
Contributor
Ok. what are the types ACL available in Wing Enterprise AP?

Hi Saravanamurthy,

There are standard IP / MAC access lists, configurable on wired or wireless interfaces - in or out, and obviously wireless association access list.

Regards,
Ondrej

Ondrej_Lepa
Extreme Employee
Hello Saravanamurthy,

WiNG Express is mentioned to be used in access layer for wireless connectivity.
Therefore its Web GUI does not include advanced features as WiNG Enterprise.

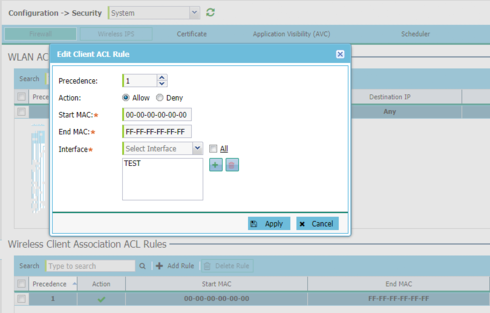

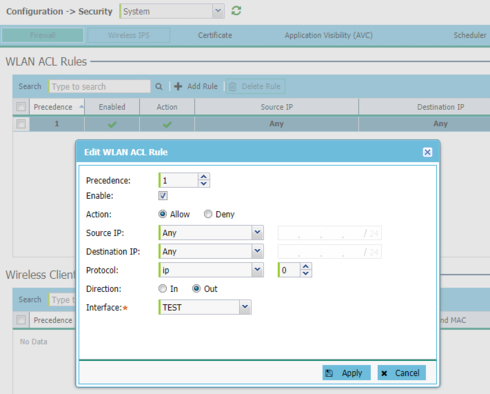

It does include only WLAN ACL and WLAN Association ACL as below

d8e3589dc8364b318e5d01628b7c1736_RackMultipart20171011-4361-6h4665-WLAN_ACL_inline.png



d8e3589dc8364b318e5d01628b7c1736_RackMultipart20171011-87010-ti2l31-WLAN_Associ_inline.png



Both ACLs are assigned per WLAN and does not affect LAN communication.

You can find more details about WiNG Express use in WiNG Express User Guide

Regards,
Ondrej
