Regarding OSPF NSSA

Regarding OSPF NSSA

Sunuk_Kim
New Contributor

Hello everyone

I know that there is no inforamtion about LSA type 5 except lsa type7 in ASBR’s NSSA.

However, when I check the OSPF LSDB, AS External LSAs information was seen as below.

        AS External LSAs
Link State ID   Adv Router      Seq#         Age Chksum  Tag
-------------------------------------------------------------
5.5.5.5         3.3.3.3         0xffffffff80000001  550  0x7e1e   0

        Router LSAs for area 0.0.0.1
Link State ID   Adv Router      Seq#         Age Chksum  #Links
-------------------------------------------------------------
2.2.2.2         2.2.2.2         0xffffffff80000005  553  0xb00a  4
3.3.3.3         3.3.3.3         0xffffffff80000002  546  0x 58b  2
4.4.4.4         4.4.4.4         0xffffffff80000003 1183  0x176a  2

        Summary LSAs for area 0.0.0.1
Link State ID   Adv Router      Seq#         Age Chksum
-------------------------------------------------------------
12.12.12.0      2.2.2.2         0xffffffff80000001 1333  0xbb75

        AS External Type 7 LSAs for area 0.0.0.1
Link State ID   Adv Router      Seq#         Age Chksum  Tag
-------------------------------------------------------------
0.0.0.0         2.2.2.2         0xffffffff80000001 1333  0xf2f1   0
5.5.5.5         3.3.3.3         0xffffffff80000001  550  0x4506   0
5.5.5.5         4.4.4.4         0xffffffff80000001 1183  0x4bf8   0



Could anybody let me know why As external LSA was seen??

Thanks in advance.

Regards.

2 REPLIES 2

Sunuk_Kim
New Contributor

Hi



Thanks for your help.

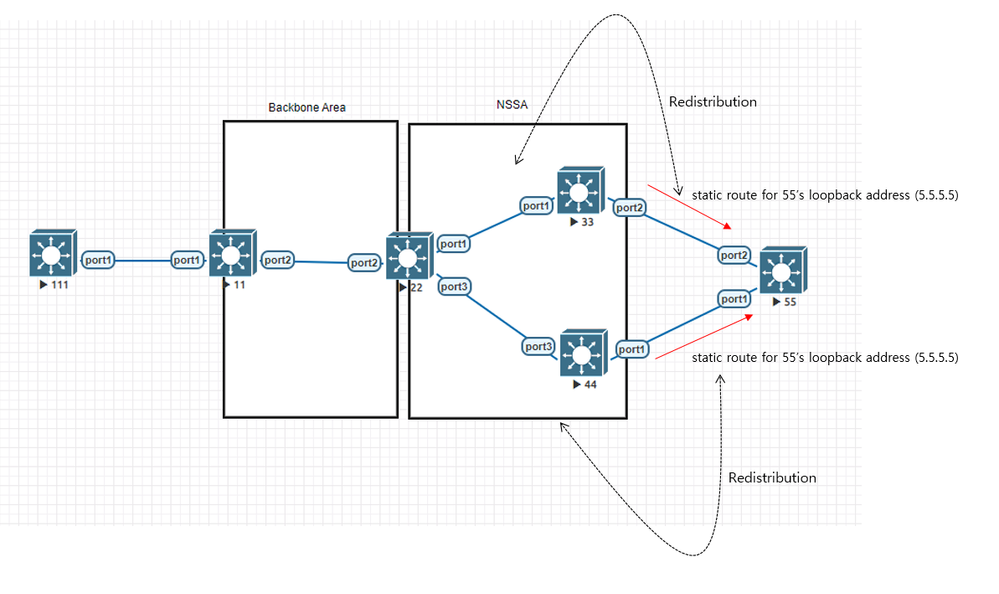

topology




Sw3 ospf config

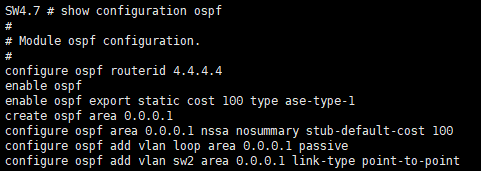

Sw4 ospf config




Tomasz
Valued Contributor II

Hi,



Would that be possible if you shared your OSPF config please? That might help to review that.



Cheers,

Tomasz
