AP3865 - Achieving High Throughput with 11ac

  • 0
  • 1
  • Question
  • Updated 3 years ago
  • Answered
Hi,

I just play around with the 802.11ac AP3865 and wonder how I'd get the max thruput.

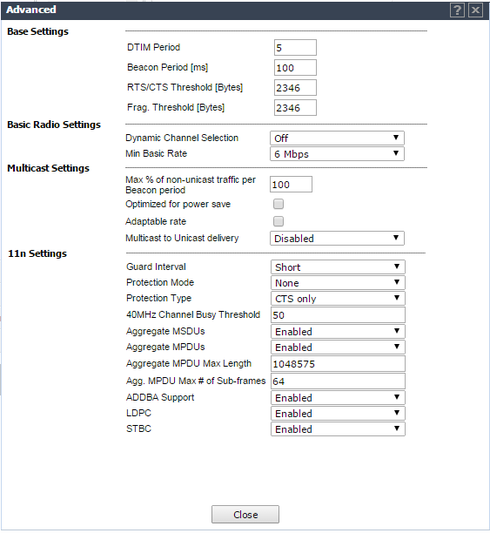

I've used the settings that are mentioned in the 9.15 user guide "Achieving High Throughput with 11n and 11ac" chapter.

Here the parameter for Aggregate MPDU Max Length is missing or wrong as the value in the manual is "enable" instead of a real number so I've left it on the default of 1048575.

Another thing is TXBF - why is there no field do enable/disable it - the option is available on radio#2 - or is it always on for 802.11ac ?

The result of a short iperf test (15streams) with a Netgear A6210 802.11ac adapter is a thruput of 330Mbit.
I've tried with another vendors AP 4:4:3 and it was 410Mbit.

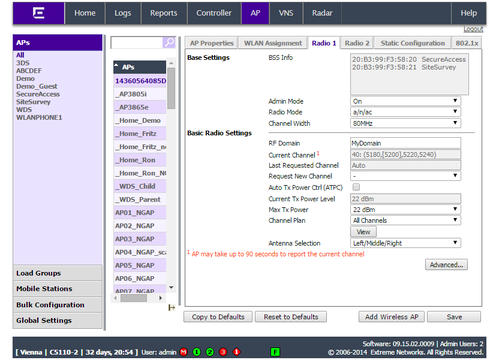

Regarding the VNS config I've used bridge@AP, open/none, WMM&802.11e, 100% airtime.

Anything that I'd change to get a better result or is that the max. that I should expect ???

Thanks,
Ron


Photo of Ronald Dvorak

Ronald Dvorak, Embassador

  • 51,186 Points 50k badge 2x thumb

Posted 4 years ago

  • 0
  • 1
Photo of Ronald Dvorak

Ronald Dvorak, Embassador

  • 51,186 Points 50k badge 2x thumb
Made a mistake in my test setup and I'm not sure whether that could affect the result.
The AP was powered by a D2 which only has 802.3af instead of 802.3at.
Photo of James A

James A, Embassador

  • 7,492 Points 5k badge 2x thumb
The AP3865 should achieve full performance with 802.3af. 4x4:3 sounds like the big C. What RSS and MCS are you seeing for the client, and how far away from the AP is it?
Photo of Doug Hyde

Doug Hyde, Technical Support Manager

  • 20,710 Points 20k badge 2x thumb
All the settings look fine. I would suggest turning off MSDU, txbf is not supported on the AC radio at this time. What is your TCP window size set to in iperf? Make sure it's set to the max.

-Doug
Photo of Ronald Dvorak

Ronald Dvorak, Embassador

  • 51,186 Points 50k badge 2x thumb
As it was not clear whether the AP needs 802.3at power or also work with 802.3af I've opened a ticket - here the official answer...

"The AP3865e requires an 802.at (POE+) power source. This AP is not tested with 802.11af (POE), so even if the device powers up and provides some functionality under AF, such deployments are not supported."


I've also asked about the function of the 2 LAN ports....
"Yes, the AP3865e sources power only from LAN#1 (POE Input). The second port (LAN#2/”Pwr Out”) is designed to eventually (not yet supported) be able to itself provide 802.3af (POE) power to some other chained device (example a security camera). Because of this design goal, the AP3865e does not support redundant power supplies, however, you can use the two ports for link aggregation."



Photo of Simon Vosper

Simon Vosper

  • 658 Points 500 badge 2x thumb
Is the adapter USB?. If so which version? Remember there is a limit to the throughput of USB too.
Photo of Raffi

Raffi, Employee

  • 1,598 Points 1k badge 2x thumb

Can you post the iperf cmd lines you are using for server and client?


Photo of Ronald Dvorak

Ronald Dvorak, Embassador

  • 51,186 Points 50k badge 2x thumb
The APs are already installed at the customer site.
If I'm not too busy I'll try it with some AP3825 next week.
I'll let you know the results and my exact settings.

-Ron
