Hi all,

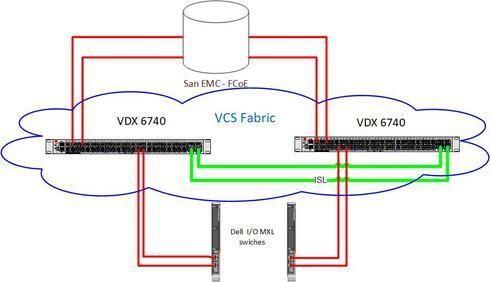

I'm working on a network topology as following
Brocade VDX are configured as VCS Fabric - Logical Chassis mode and also, using VDX6740 I enable FCoE on some interface.
On SAN side, I saw correctly FCoE login from both VDX, so either on interface on rbridge-id 1 and r-bridge 2 while on DELL MXL I/O I can see login only on one r-bridge. Both VDX interfaces are configured in same manner. The strange thing is that when I disable ISL links between VDX, so I remove VCS fabric feature, I can see FCoE login from both DELL MXL
Do you known about some limitation on FCoE over the ISL (or TRILL link). If can be possibile I would connect Dell Switch in Dual Homing with vLag. Do you known if this is possible in this kind of architecture?
Thanks in advance for reply
Best Regards
Beppe
I'm working on a network topology as following
Brocade VDX are configured as VCS Fabric - Logical Chassis mode and also, using VDX6740 I enable FCoE on some interface.
On SAN side, I saw correctly FCoE login from both VDX, so either on interface on rbridge-id 1 and r-bridge 2 while on DELL MXL I/O I can see login only on one r-bridge. Both VDX interfaces are configured in same manner. The strange thing is that when I disable ISL links between VDX, so I remove VCS fabric feature, I can see FCoE login from both DELL MXL
Do you known about some limitation on FCoE over the ISL (or TRILL link). If can be possibile I would connect Dell Switch in Dual Homing with vLag. Do you known if this is possible in this kind of architecture?
Thanks in advance for reply
Best Regards
Beppe
