Syslog entries missing in XMC Events window

Syslog entries missing in XMC Events window

DH1
New Contributor III
Just upgraded to XMC 8.2.4.42 and was hoping it would fix the issue with my syslog events now showing in the Events window. If I go to the Syslogs folder on the server I see them there but for some reason they are not getting replicated to the Event window.
8 REPLIES 8

Bernhard_Gruenw
New Contributor
I had also no syslog entries under Events.
I had to configure in Event Configuration - Event Logs - Syslog the correct Directory.
/var/log/syslog and Ubuntu LINUX Syslog Pattern.
In my case here was /var/log/Messages and RedHad.
After this Change the syslog entries appear

Ronald_Dvorak
Honored Contributor
Just in case my syslog config and the output of the show command of my X440G2 running 22.6.1.4.

X440G2.7 # show config | i syslog
configure syslog add 172.24.24.110:514 vr VR-Default local0
enable log target syslog 172.24.24.110:514 vr VR-Default local0
configure log target syslog 172.24.24.110:514 vr VR-Default local0 filter DefaultFilter severity Info
configure log target syslog 172.24.24.110:514 vr VR-Default local0 match Any
configure log target syslog 172.24.24.110:514 vr VR-Default local0 format timestamp seconds date Mmm-dd event-name none priority host-name tag-name

X440G2.8 # sh log configuration target syslog
Log Target : syslog; 172.24.24.110:514 (vr VR-Default), local0
Enabled : yes
Filter Name : DefaultFilter
Match regex : Any
Severity : Info (through Critical)
Format : PRI Mmm DD HH:MM:SS HOSTNAME TAG:
Port Type : UDP

DH1
New Contributor III
This is all I have and I have over 130 switches setup to send syslog info to XMC.


Ronald_Dvorak
Honored Contributor

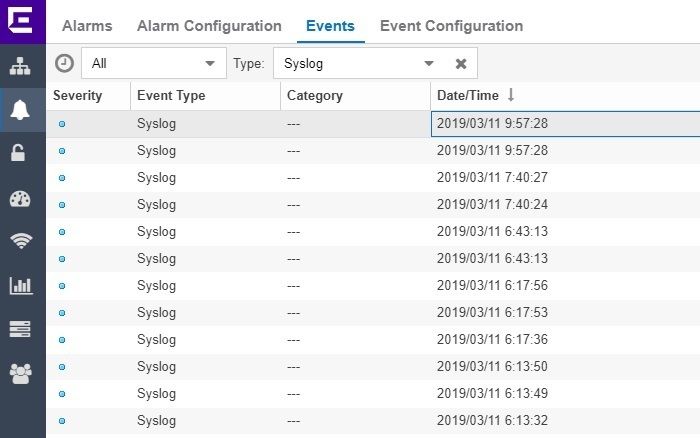

Here my 8.2 view which incl Syslog messages....

-Ron
