Upgrading X460 from version 15.5.3.4 to version 16.2.2.4 using Netsight version 7.1.1.9

[Rod_Robertson2]

We have found that downloading XOS to a x460 from netsight ( or its latest naming convention ) we loose remote management and SNMP traffic , to that switch, that basically causes our management systems ( PRTG and Netsight ) to start generating alarms.

The update is successful once access is returned by confirming in the log etc.

We have manually upgraded some X480 units ( console/telnet connected and a TFTP server ) and we do not see the same scenario ie. No alarm generated. Logs look OK .

So the question is:
Is netsight working as expected .. does netsight , uses different commands or process that have an effect on the CPU.

Basically is this expected behaviour or not.

[Rod_Robertson2]

The units were rebooted this morning and successfully upgraded

[Rod_Robertson2]

Hi

The basic scenario , is that we were uploading code to the switch for a later timed reboot.

What we found when using Netsight for this upload we lost communication while the upload was preformed ( I have assumed high CPU while downloading image ) stopped the switches response to PRTG and Netsight.

While performing the same action , this time not using Netsight as the tftp server, we experienced no alarms from our management tools.

I hope that clears up the scenarios we were encountering.

[Ronald_Dvorak]

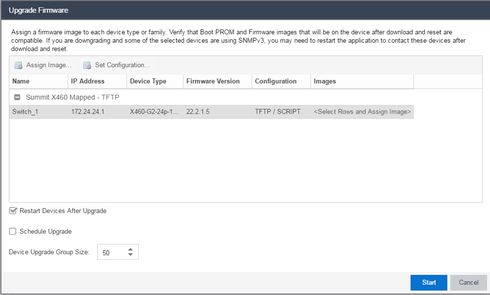

As you'd see per default "Restart Devices After Upgrade" is set.
That restart/reboot would explain the alarms that you get.

[Ronald_Dvorak]

Did you restart the X480 so the new software is active or could the switch do that without a reboot?
