Thomas_Gfeller · ‎09-29-2020

Hey there

I would like to trigger an SNMP Trap if a certain Alarm in XMC rises, so i choose the “Trap Action” in the desired Alarm. So the problem now is, that XMC sends a SNMP Inform Message and not a Trap defined in the SNMP Standard. Is there a way to change that?

Thanks

Thomas


SamPirok · ‎10-08-2020

Thanks for clarifying for me Thomas, it looks like we can only send inform packets via v2 and v3 per this KB:https://extreme-networks--c.na101.visual.force.com/apex/KCS_QA_Internal?srKp=ka2&id=kA22T000000XZkv&...

I’m sorry I don’t have a better answer for you here. I might suggest reaching out to your sales engineer to file a feature request to see if we can get that changed in a later release. If you’re unsure who to reach out to for your sales engineer, please let me know and I’ll email that information directly to you.

View solution in original post

Thomas_Gfeller · ‎10-07-2020

damn, i linked my own message as “best answer” ...sorry for that Sam

Thomas_Gfeller · ‎10-07-2020

Hi Sam

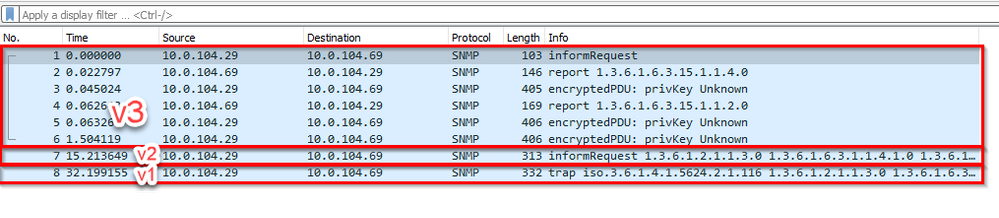

Thanks for your reply. i was able to test it. So i get to the point that only v1 sends a Trap message, v2 and v3 are sending Inform Packets. I took a print screen of the different packets captured by wireshark.


Thanks

Thomas

SamPirok · ‎09-29-2020

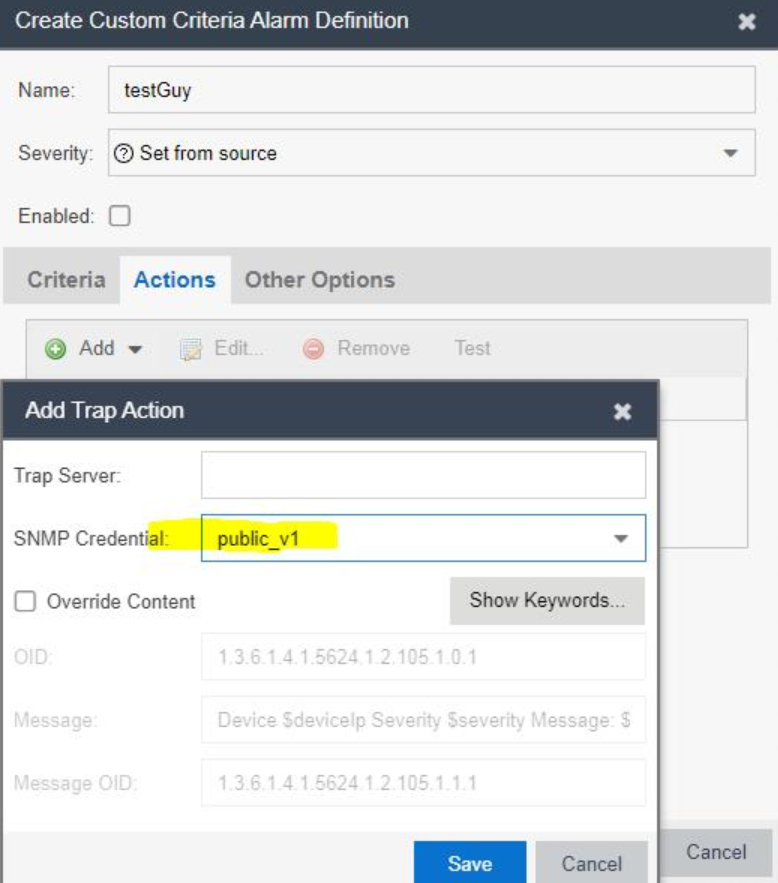

When you go to select the Action> Trap action, you should see a window pop up to configure the trap. If you have selected SNMP credential in the form of SNMP V3 inform, then you’ll see those SNMP inform packets. If you select SMNP v1 or v2, you should see trap messages. Here is a screen shot of the area I’m referring to:
