EXOS packet handling - from vlan binding over policy/ACL handling to packet forwarding

[M_Nees]

i am looking for some detailed information how an EXOS Switch handle a data packet (beyond the manual).

In the old Enterasys knowledge-base i knew an article which described exactly what happenend when a packet is arriving on a port - how it is been forwarded - how VLAN and Policy is binding - Queue handling - etc. Is is the complete sequence. It was coming like a block diagram which shows all the details very clearly.

Unfortunately i cannot find the article again - but i knew it and i hope this informatione will be today also available for EXOS and EOS.

If somebody can provide such information it will be very welcome.

Regards,
Matthias

[Ryan_Mathews]

Here's a link to the page Edward mentions:
http://documentation.extremenetworks.com/exos/EXOS_21_1/QoS/qos.shtml

I know Matthias knows this, but wanted to post for others that may read in future.

I'll ask around and see what happened to the old KB article he's referencing.

[Edward_Tsui]

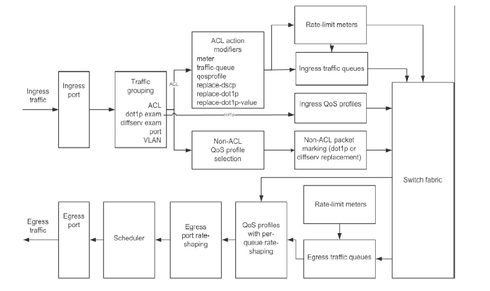

Are you looking for this one? It can be found in user v16.2 user manual QoS section.
