For connecting multimode fiber how do we check Rx or Tx are properly working without breaking?

For connecting multimode fiber how do we check Rx or Tx are properly working without breaking?

Alok_Shukla
New Contributor III
For connecting multimode fiber there is some functionality available in cisco like UDLD and loopguard, what about on extreme switches?
4 REPLIES 4

GONÇALO_NUNO_CO
New Contributor III
Hi Alok,

You can also check the transceiver details.

Slot-1 SFISIA050100.2 # sh port 1:49 transceiver information detail
Port : 1:49
Media Type : SX (Industrial Temperature)
Vendor Name : WTD
Part Number : RTXM191-552
Serial Number : EB161300090541
Wavelength : 850 nm
Temp (Celsius) : 32.91 Status : Normal
Low Warn Threshold : -40.00 High Warn Threshold : 90.00
Low Alarm Threshold : -45.00 High Alarm Threshold : 100.00
Voltage AUX-1/Vcc (Volts) : 3.30 Status : Normal
Low Warn Threshold : 3.10 High Warn Threshold : 3.50
Low Alarm Threshold : 3.00 High Alarm Threshold : 3.60

Tx Power (dBm) : -6.19 Status : Normal
Low Warn Threshold : -7.17 High Warn Threshold : -5.17
Low Alarm Threshold : -8.17 High Alarm Threshold : -4.17
Rx Power (dBm) : -6.42 Status : Normal
Low Warn Threshold : -15.00 High Warn Threshold : -3.00
Low Alarm Threshold : -18.01 High Alarm Threshold : 0.00
Tx Bias Current (mA): 3.83 Status : Normal
Low Warn Threshold : 0.90 High Warn Threshold : 37.20
Low Alarm Threshold : 0.72 High Alarm Threshold : 47.20
Regards

GONÇALO_NUNO_CO
New Contributor III
Hi Alok, Im no sure of this is the same as UDLD, but extreme has ELRP.

https://gtacknowledge.extremenetworks.com/articles/Q_A/What-is-ELRP

Regards

Lutha
New Contributor II
HI Alok

you can use the below commands to see if there is RX or TX errors

sh port rxerrors port-number
sh port txerrors port-number

for a specific port use like this
sh port 1:2 txerrors

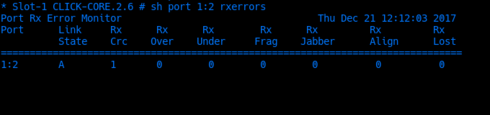

sh port 1:2 rxerrors

4e58fb6e9dd44ba68e29c7301ca1b282_RackMultipart20171221-18987-16irgmz-image_inline.png



Alok_Shukla
New Contributor III
Thanks
