Monitoring EXOS stack members via PRTG?

Monitoring EXOS stack members via PRTG?

ksaelens
New Contributor
Hello,
I'm attempting to track down a means of monitoring the status and/or health of Extreme switches in a stack. I recently had a non-master switch in a stack fail to boot back up after I upgraded the EXOS version of the stack and I didn't catch this until school started the next day. The stacks throughout our district are combinations of X440, X450-G2 and X460-G2 switches.

I found the following thread but I can't for the life of me find the entry Henrique mentions in said switches' MIBs via Paessler MIB Importer V3 for PRTG.

https://community.extremenetworks.com/extremeswitching-exos-223284/how-to-monitor-stack-switch-x440-...

Thank you in advance for any and all assistance!
2 REPLIES 2

ksaelens
New Contributor
Thank you for the reply, Kawawa.

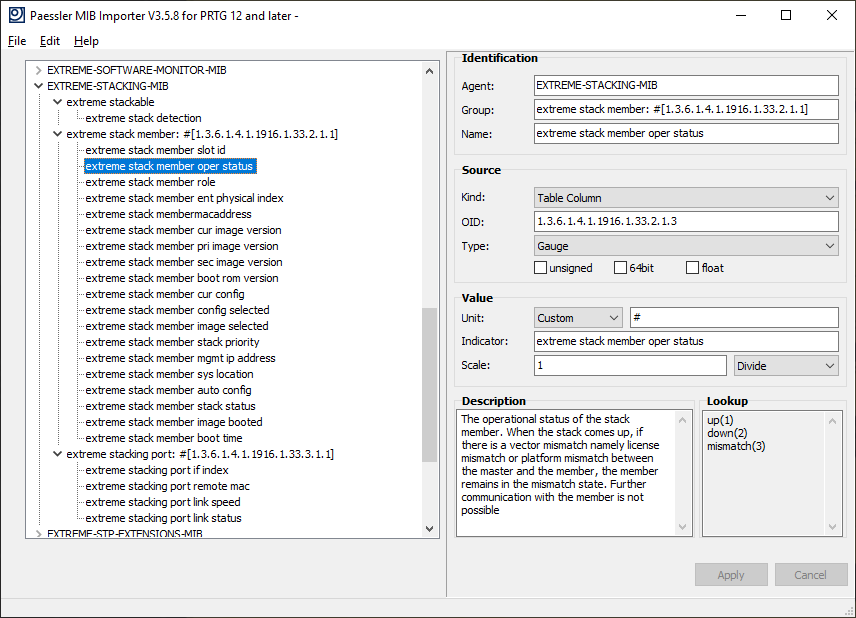

After giving it a few days I reimported the MIBs and I was able to find the exact entry you mentioned. Please see the screenshot below.

Have a great weekend!


Kawawa
Extreme Employee
If you have imported the EXTREME-STACKING-MIB you can use the following
code:
extremeStackMemberOperStatus=1.3.6.1.4.1.1916.1.33.2.1.3

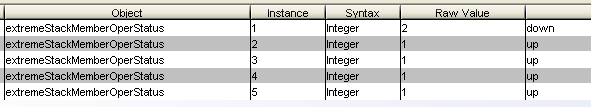

The following are the three states:
code:
extremeStackMemberOperStatus OBJECT-TYPE
SYNTAX Integer {
up(1),
down(2),
mismatch(3) }

The operational status of the stack member. When the stack
comes up, if there is a vector mismatch namely license mismatch or
platform mismatch between the master and the member, the member
remains in the mismatch state. Further communication with the member
is not possible



I hope this answers your question
