Why can not I set up a mirroring?

[choi_seonghyeon]

I set up the mirroring, but an unknown log is generated and registered in the actual "show mirror"

After connecting the actual wireshark to port 9:10, the packet will not become a mirror.

If you have a problem like this, can you find a solution?

The commands entered are as follows.
create mirror DB_Mirror
config mirror "DB_Mirror" to port 9:10
config mirror "DB_Mirror" add port 3:17 ingress-and-egress
enable mirror "DB_Mirror"

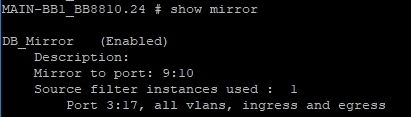

show mirror

[Korsovsky__Kons]

Hi Choi,

I would check if there is enough ACL resources with following command:

code:

# show access-list usage acl-slice port 3:17

If there are free resources and the issue is still there please log the case with GTAC to investigate further.
