OOB Routing: Accessing OOB from different subnet

[schuert]

Hi Guys!

A few days ago i updated our vsp 7254 to VOSS Version 8.2. The new version implemented some changes for the management-interfaces/IPs according to:

Our OOB is segmented into different subnets. if im trying to connect from the same subnet the oob-ip belongs to, i can successfully reach the system but i can’t ssh or even ping the oob-ip from the other subnets.

i created the static routes for the different subnets with:

enable
conf t
mgmt oob
ip route 172.28.12.0/24 next-hop 172.28.15.1
ip route 172.28.13.0/24 next-hop 172.28.15.1
ip route 172.28.14.0/24 next-hop 172.28.15.1
exit

the oob-interface has the ip 172.28.15.5/24. how come the interface wont route? is this intentionally?

Best regards,
schuert

[EXTR_Paul]

@schuert TTBOMK all three interface types will work at the same time.

OoB, L2, CLIP.

[Miguel-Angel_RO]

schuert,

Why dont you simply add a default route to the oob mgmt?:

enable
conf t
mgmt oob
ip address 172.28.15.5/24
ip route 0.0.0.0/0 next-hop 172.28.15.1
enable
exit

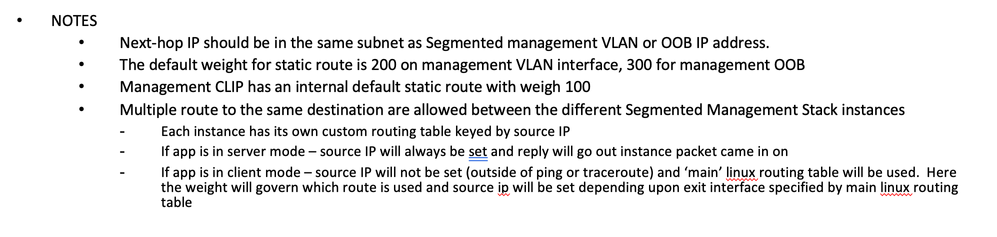

There are some characteristics to keep in mind:

Mig

[schuert]

the oob-interface was enabled already. i can reach and connect the ip via a system in the same subnet but not from different subnets. other devices in these subnet can successfully route via the GW to the 3 other oob-nets, so this can only be caused by a routing-problem on the vsp.

additionally im using a clip in vrf0 for inbound management, maybe using two kinds of mgmt-interfaces is not supported?

#show mgmt interface
************************************************************************************
		Command Execution Time: Wed Jan 06 23:16:05 2021 UTC
************************************************************************************

==================================================================================================
                                    Mgmt Interface Information
==================================================================================================
INST      DESCR      TYPE      ADMIN      VLAN      PORT      VRF              PHYSICAL
--------------------------------------------------------------------------------------------------
1         Mgmt-oob1  OOB       enable     -         oob       -                94:9b:2c:a2:18:81
3         Mgmt-clip  CLIP      enable     -         -         GlobalRouter     aa:bb:cc:dd:ee:01

2 out of 2 Total Num of mgmt interfaces displayed


#show mgmt ip
************************************************************************************
		Command Execution Time: Wed Jan 06 23:15:26 2021 UTC
************************************************************************************

================================================================================
                               Mgmt IP Addresses
================================================================================
INST   DESCR      IPV4                 TYPE (ORIGIN)
--------------------------------------------------------------------------------
1      oob1       172.28.15.5/24        Manual
3      clip       172.28.64.23/32       Manual

2 out of 2 Total Num of dynamic addresses displayed
--------------------------------------------------------------------------------


#show mgmt ip route
************************************************************************************
		Command Execution Time: Wed Jan 06 23:15:02 2021 UTC
************************************************************************************

==========================================================================================
                         Mgmt IPv4 Route Information - Table main
==========================================================================================
DEST/MASK            NEXTHOP              METRIC     INTERFACE       TYPE
------------------------------------------------------------------------------------------
0.0.0.0/0            0.0.0.0              100        Mgmt-clip       INTERNAL
172.28.12.0/24       172.28.15.1          300        Mgmt-oob1       STATIC
172.28.13.0/24       172.28.15.1          300        Mgmt-oob1       STATIC
172.28.14.0/24       172.28.15.1          300        Mgmt-oob1       STATIC
172.28.15.0/24       0.0.0.0              1          Mgmt-oob1       LOCAL
172.28.64.23/32      0.0.0.0              1          Mgmt-clip       LOCAL

6 out of 6 Total Num of mgmt ip route displayed
------------------------------------------------------------------------------------------

[EXTR_Paul]

Here is a config example I have used.

mgmt oob

ip address 20.20.20.200/24

ip route 0.0.0.0/0 next-hop 20.20.20.1 weight 300

enable /////// Not sure if this is required.

exit
