S-Tag over VOSS Fabric using VSP 7400 Switches

[Ashlee_Smith]

Hi All

TLDR: We cannot get S-Tag vlans to pass over the Fabric between our two VSP 7400 switches.

We have the following deployed in our network;

2 x Extreme VSP 7400 Software version 8.0.5.1

These are joined by two 100Gb cables.

ISIS is enabled

ISIS Spbm 1

The Fibre provider port is Flex-uni enabled and Encapsulation Dot1Q

The Router uplink is Flex-uni enabled and Encapsulation Dot1Q

As a side note we tried removed Encapsulation Dot1Q and it made no difference.

Scenario:

We have a fibre provider that is handing services over as S-Tags.

Currently over this setup we are able to pass C-Tags but cannot pass S-Tags.

We can learn MAC address entries when using S-Tag on both switches across the I-SID but not on the edge devices these VLANS terminate onto.

Configuration we tried to get it working:

Switch 1 - Where fibre provider plugs into

Create I-SID 1000

c-vid 1000 port 1/1 (Fibre provider)

Switch 2 - Where the uplink Router plugs into

Create I-SID 1000

c-vid 1000 port 1/5 (uplink to Router)

This does not work unfortunately, if we drop the S-Tag identifier we can learn MAC addresses and push L3 traffic across.

Things we have tried alternative to config changes:

Deployed additional 2 x Extreme VSP 7400s and upgraded them to Software version 8.3.0.0

Even on this version we cannot get it working.

I have followed this thread and downloaded the PDF and according to that we are doing everything correctly:

[Ashlee_Smith]

Okay I see.

Let me throw a curve ball in 🙂

We have our own lab setup that uses the following:

0x8100 is kept across all devices involved. The edge routers are mikrotiks with service identifier turned on (S-Tag).

Edge router A 0x8100 - VLAN 3490

Edge router B 0x8100 - VLAN 3490

Extreme Switch 1

i-sid 3490

c-vid 3490 port 1/7 - Edge router A

Extreme Switch 2

i-sid 3490

c-vid 3490 port 1/32 - Edge router B

We are unable to pass S-Tag across the fabric with this setup.

MAC Table from SW1

************************************************************************************
                Command Execution Time: Wed May 05 10:54:22 2021 SAST
************************************************************************************

========================================================================================================
                                               I-SID Fdb Table
========================================================================================================
I-SID     STATUS  MAC-ADDRESS        INTERFACE        TYPE       DEST-MAC           BVLAN DEST-SYSNAME
--------------------------------------------------------------------------------------------------------
3490      learned 48:8f:5a:64:d1:eb  Port-1/49        REMOTE     00:db:dc:01:00:02  4052  JHB-Core-Switch-2
3490      learned b8:69:f4:6a:1e:44  c3490:1/7        LOCAL      00:00:00:00:00:00  0

c: customer vid   u: untagged-traffic

All 2 out of 2 Total Num of i-sid FDB Entries displayed


MAC Table from SW2

                Command Execution Time: Wed May 05 10:53:34 2021 GMT
************************************************************************************

========================================================================================================
                                               I-SID Fdb Table
========================================================================================================
I-SID     STATUS  MAC-ADDRESS        INTERFACE        TYPE       DEST-MAC           BVLAN DEST-SYSNAME
--------------------------------------------------------------------------------------------------------
3490      learned 48:8f:5a:64:d1:eb  c3490:1/32       LOCAL      00:00:00:00:00:00  0
3490      learned b8:69:f4:6a:1e:44  Port-1/49        REMOTE     00:db:dc:01:00:01  4052  JHB-Core-Switch-1

c: customer vid   u: untagged-traffic

All 2 out of 2 Total Num of i-sid FDB Entries displayed


As you can see we are learning MAC addresses across the fabric between the switches but not from the routers:

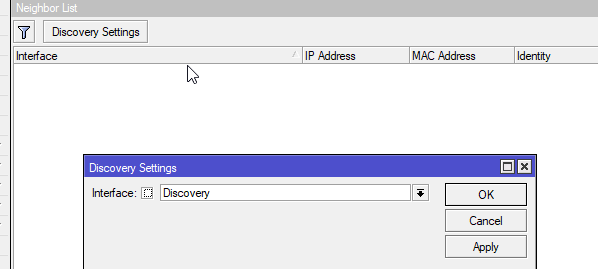

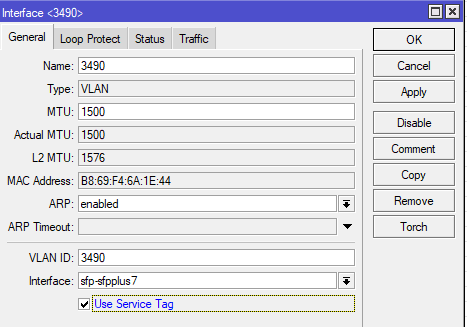

Edge Router A

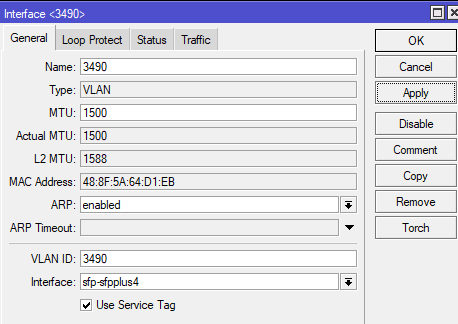

Edge router B

[Roger_Lapuh]

yes, then the S-tag will be used to classify the VLANs.

[Ashlee_Smith]

Okay I see, this is a downer as the reason we went with these switches was to pass S-Tags but I understand what you are saying.

I do not know the ethertype the provider is handing over but I assume it is either 0x88a8 or 0x9100.

Let me confirm that, if they can accommodate a 0x8100 ethertype then am I correct to assume the fabric will have no issues passing the S-Tag?

[Roger_Lapuh · Accepted solution]

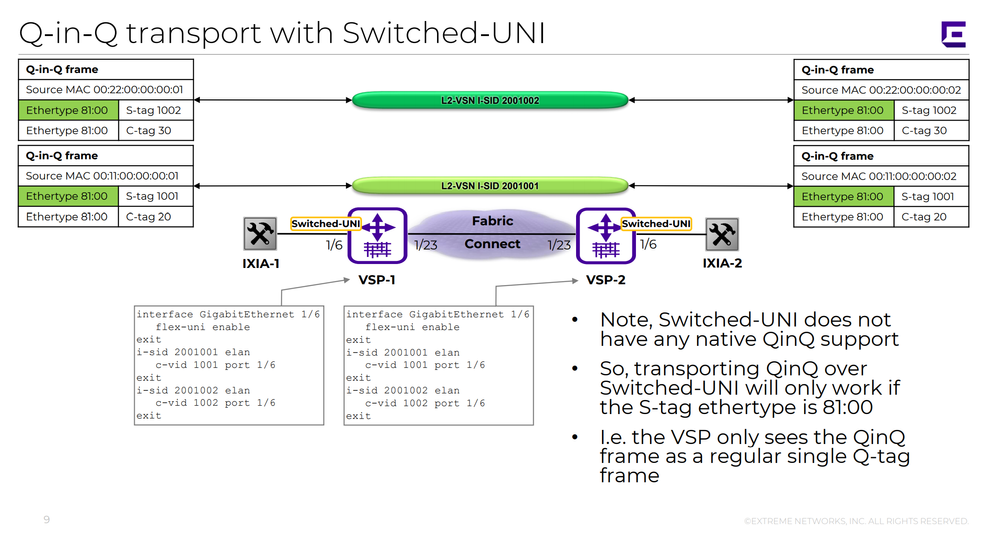

QinQ packet coming from the provider, otherwise VSP does not know to look at the q-tag. VSP does not support QinQ natively at this point. This would require a feature request.

Roger

[Ashlee_Smith]

The ethertype of the SPBM is 0x8100 if that is what you are referring to.

Or do you mean the packet coming in from the Fibre provider side?
