Hi Christian,
You can setup computer/machine cert based authentication by following these steps. You would also need to take care of the certificate distribution to your iOS and non-windows devices, that can’t be done with EAC.
1- Point your XCC to the EAC as radius server using the AAA configuration the XCC. Make sure NOT to use local onboarding option in WLAN settings.
2- On the EAC, you need two types of certificates i.e.
- Root CA of the domain that is issuing/signing the certs for your client devices.
- Radius cert issued by the same domain.

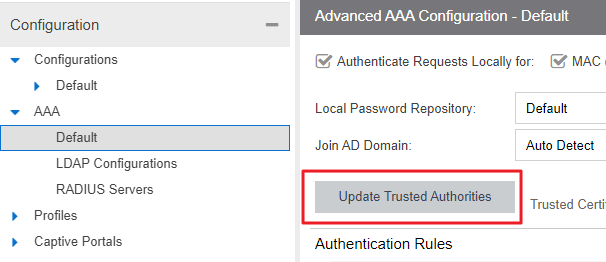

3- Load the CA cert on the “Update Trusted Authorities” under AAA settings in EAC.
4- Update the Radius cert on the EAC as follows:
5- Setup LDAP on EAC to authenticate your machines/computers, make sure you set it up with AD machine default values as per following:

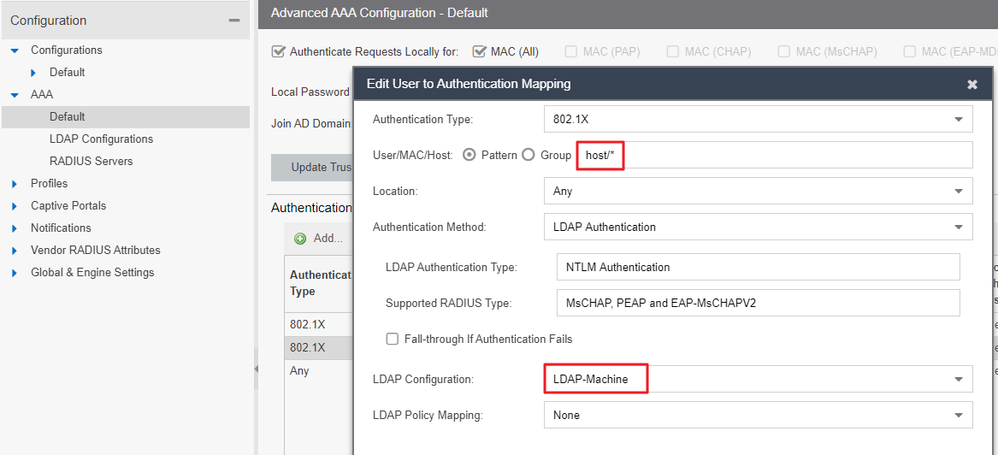

6- Configure AAA rule as per below and make sure you have correct match pattern for host and LDAP settings selected, usually it is host/* or *@* depending on how your directory service is setup.
7- Finally, create an appropriate rule to address the cert based authentication, you either set it to a more generic auth type 802.1x or be more specific and set it to 802.1x EAP-TLS.
8- And most importantly, don’t forget to press the magic “Enforce” button
Let us know how it goes.
Regards,
Ovais
