NAC&V2110: unable to change from Admin port to esa0 IP

[Ilya_Semenov]

Hello, team,

I try to follow this article:

https://extremeportal.force.com/ExtrArticleDetail?an=000090139

...and I can't do this:

• EWC Connection: Change from Admin port IP (192.168.10.1) to esa0 IP

IP-address on esa0 was assigned, but I can't select it here - it's absent and only Admin IP is available. Why?

Many thanks in advance,

Ilya


[Ilya_Semenov]

Yury, I have 10.01.02.38 and there is no such menu in Global. My APs are 3805. Please, have a look. Also, in FF-External it uses Admin interface, instead of Physical - and it could not be changed.

[Ostrovsky__Yury]

btw , forget to mention - the br@AP will work only with 38xx and 39xx series . The 37xx you would still need to tunnel back to the controller (br@EWC mode)

[Ostrovsky__Yury]

Ok , VNS-->Global-->Filtering Mode -->Rule Based Redirection , there is a check box.
Then go to Roles -->Unregistered , add a Rules : HTTP (to 0.0.0/0:80) and HTTPS , action = Redirect , on Role Dafault Action : redirection : Own WLAN.

[Ilya_Semenov]

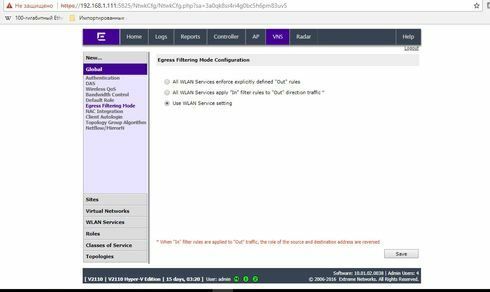

Yury, I have v10, but there is not Role Based Redirection in VNS > Global.

I've changed to FF-Extrenal but it doesn't work even in preview. I'll do some screens...

[Ostrovsky__Yury]

As I mentioned - use FF-ECP, emable "Role Based Redirection" , configure your "Unregistered" Role with HTTP/HTTPS action : redirect ; on Uregistered Role Default page set "redirect to WLAN own" . On WLAN enable "FF-ECP", enter the URL link to NAC page (http or https).
